| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

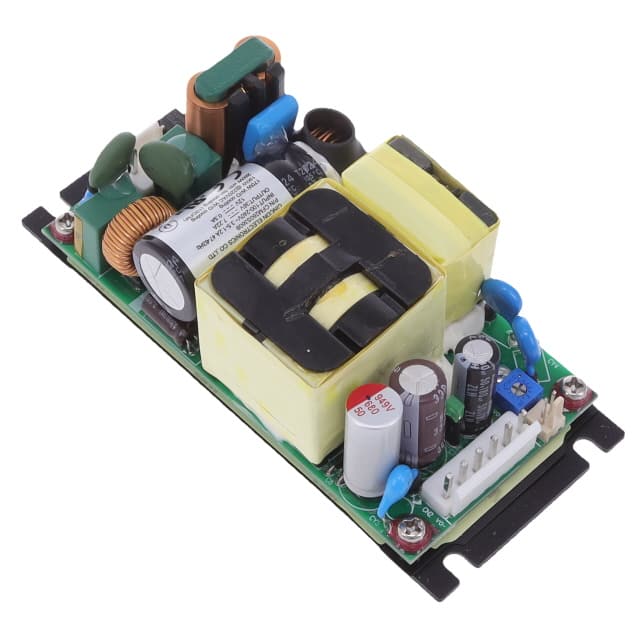

This Cincon Electronics Co. LTD CFM260S360B is an open frame AC/DC converter designed for chassis mounting. It delivers a power output of 260W with a current rating of 7.22A.
The converter features a universal input and includes Power Factor Correction (PFC). Its operating temperature range is from -30°C to 80°C with derating. The device meets safety standards such as 60335-1 and 62368-1.
Key electrical specifications include a high efficiency of 93% and an isolation voltage of 3 kV. The dimensions are 116.8mm in length, 50.8mm in width, and 38.6mm in height.
Applications for this converter include household appliances and ITE commercial equipment.
The CFM260S360B provides a 36V output.
The CFM260S360B is rated for 260W.
The operating temperature range is -30°C to 80°C with derating.
The CFM260S360B achieves 93% efficiency.
It is designed for chassis mount.
The converter provides 3kV of isolation.
