| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

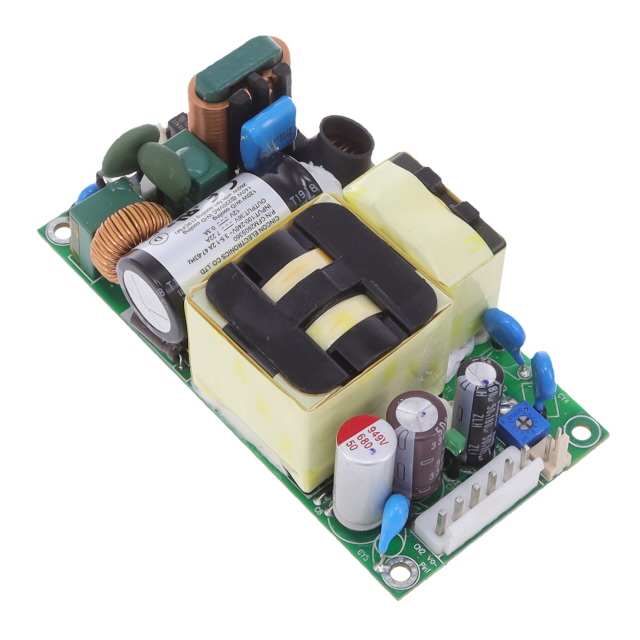

The Cincon CFM260S360 is an open-frame AC-DC power converter designed for various applications, including household appliances and ITE (Commercial) equipment. It delivers a 36V output voltage and can handle up to 260W of power.
This converter operates with a wide input voltage range of 85 to 264 VAC and features Power Factor Correction (PFC) for improved efficiency, rated at 93%. Its robust design includes a chassis mount type and operates within a temperature range of -30°C to 80°C with derating. The unit adheres to standard numbers 60335-1 and 62368-1.
Key specifications include a current rating of 7.22A, a single output, and dimensions of 101.6mm x 50.8mm x 33.6mm. The CFM260S360 is designed for reliable performance in demanding environments, offering a versatile power solution for embedded systems and industrial applications.
36V
Open frame with chassis mount.
-30°C to 80°C with derating.
93%
85 to 264 VAC
260W
101.6mm x 50.8mm x 33.6mm (4.00" x 2.00" x 1.32")
