| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

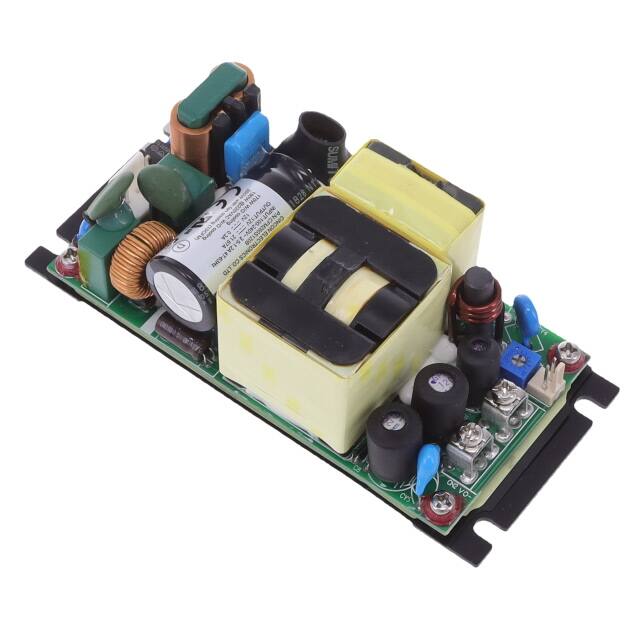

The CFM260S120B is an AC/DC converter from Cincon Electronics Co. LTD, delivering 260W of continuous power at 12V output. It features an open frame chassis mount design with a compact footprint of 116.8mm x 50.8mm x 38.6mm. The converter achieves 92% efficiency and provides 3kV input-to-output isolation for safety. It includes baseplate, PFC, and universal input capabilities, making it suitable for worldwide use. The operating temperature range is -30°C to 80°C with derating. This single output converter is designed for household appliances and ITE (commercial) applications. It complies with safety standards 60335-1 and 62368-1.
Chassis Mount.
-30°C to 80°C with derating.
92%.
3kV.
1.
60335-1 and 62368-1.
Baseplate, PFC, and Universal Input.
