| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

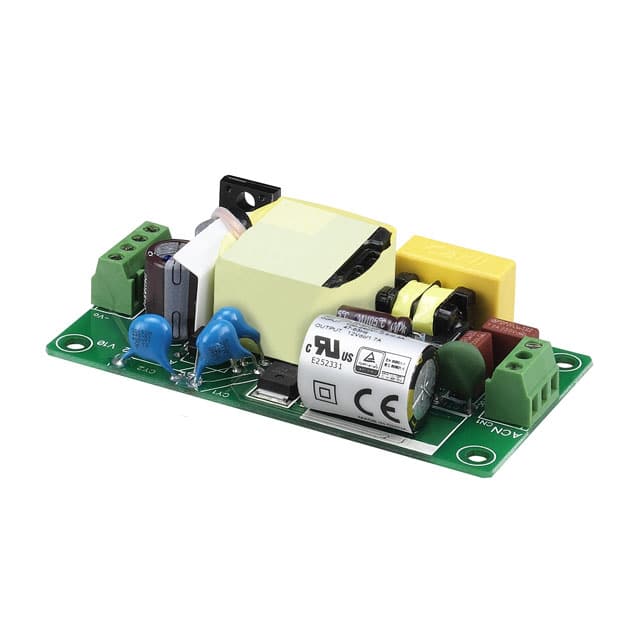

This Cincon CFM21M150-S is an open frame AC/DC power supply with a single output of 15V and a maximum current of 1.4A, resulting in a total output power of 21W. It operates with an efficiency of 85% and features universal input from 90 to 264 VAC.
The converter is designed for chassis mounting and has dimensions of 76.2mm x 40.6mm x 19.2mm. It is suitable for applications in ITE (Commercial) and Medical sectors, offering an isolation voltage of 4kV. The operating temperature range is -25°C to 70°C with derating.
Key specifications include a regulated output, universal input capability, and compliance with CE, cURus, and TUV approval agencies. This model is part of Cincon's external/internal AC DC converter series.
The CFM21M150-S provides a single output of 15V at 1.4A.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -25°C to 70°C with derating.
The dimensions are 76.2mm x 40.6mm x 19.2mm (3.00" x 1.60" x 0.76").
It is approved by CE, cURus, and TUV.
The efficiency is 85%.
The isolation voltage is 4kV.
