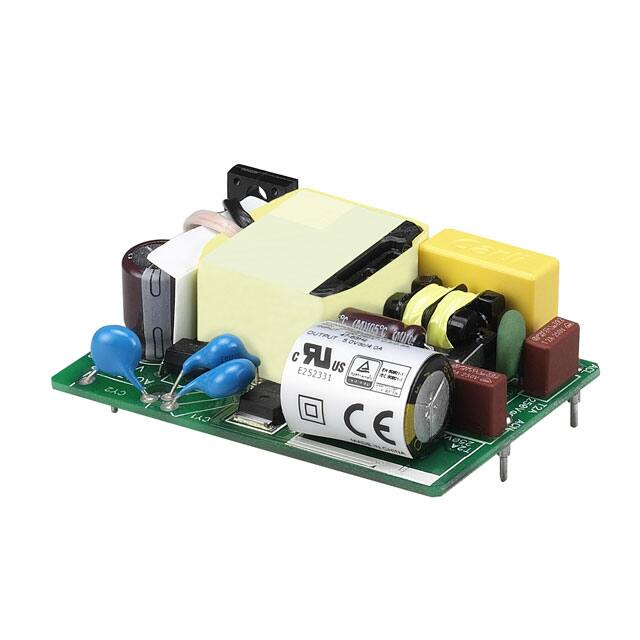

The Cincon Electronics Co. LTD CFM21M090 is an open frame AC/DC converter designed for household appliances and ITE commercial applications. It provides a single output of 9V with a maximum current of 2.3A, delivering a total power of 21W.
This converter operates with a universal input voltage range of 90 to 264 VAC and boasts an efficiency of 83%. Key features include universal input capability and approval by agencies such as CE, cURus, and TUV, ensuring compliance with various safety standards including 60335-1 and 62368-1.
The physical dimensions are 60.5mm in length, 40.6mm in width, and 20.1mm in height. It is designed for through-hole mounting, making it suitable for integration onto printed circuit boards. The operating temperature range is -25°C to 70°C with derating.
Environmental compliance includes RoHS3 compliance and an MSL rating of 1. The REACH status is unaffected.
90 to 264 VAC.
Module package.
-25°C to 70°C with derating.
83%.
2.3A.
CE, cURus, TUV.
Household appliances and ITE (commercial) equipment.
