| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

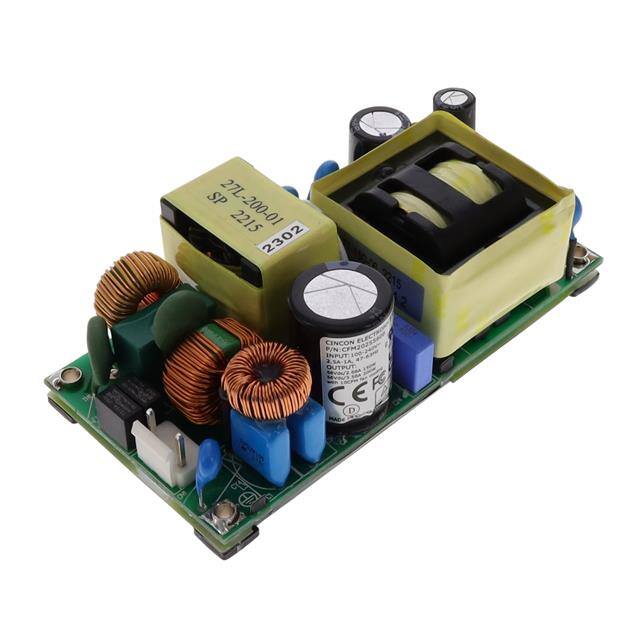

The Cincon CFM202S560B is an AC/DC converter designed for demanding applications, delivering 150W of power with a peak of 200W under forced air. This open frame unit features a chassis mount for secure integration into systems.
Key electrical specifications include a high efficiency of 94% and a universal input capability. The converter is equipped with features such as baseplate cooling, Power Factor Correction (PFC), and a standby output. It provides a single output with an isolation voltage of 4 kV.
Designed for reliability, the CFM202S560B operates within a wide temperature range of -40°C to 80°C with derating. Its dimensions are 101.6mm x 50.8mm x 33.3mm. The unit is approved by CE, cURus, DEMKO, and FCC, and complies with standards like 60335-1 and 62368-1.
This converter is suitable for applications in household appliances and ITE (Commercial) environments. It is RoHS3 compliant and has an MSL rating of 1.
The Cincon CFM202S560B provides 150W of power, with a peak capability of 200W under forced air conditions.
The operating temperature range is -40°C to 80°C, with derating applied.
The CFM202S560B uses a chassis mount.
Yes, the CFM202S560B is RoHS3 compliant.
The Moisture Sensitivity Level (MSL) is 1.
