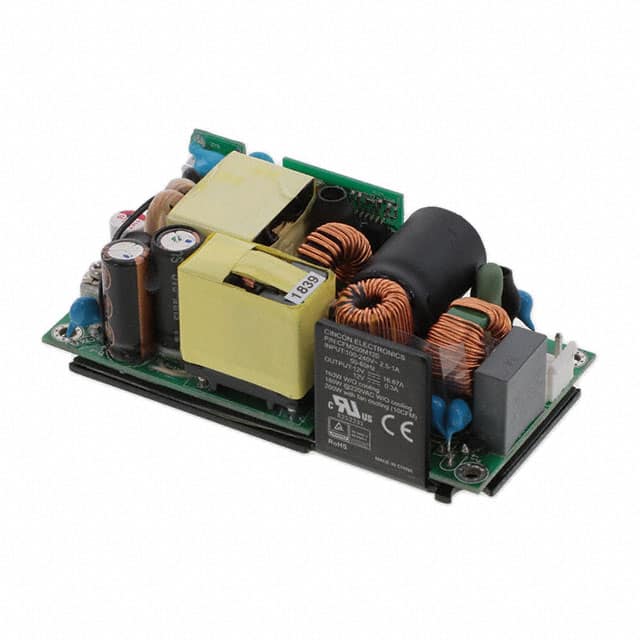

The Cincon CFM200M120 is an AC/DC converter designed for ITE (Commercial) and Medical applications. It delivers 200W of power with a maximum output current of 16.67A and features a high isolation voltage of 4kV.
This converter operates with a universal input and boasts an efficiency of 92%. Its mechanical specifications include dimensions of 101.6mm in length, 50.8mm in width, and 37.6mm in height. The unit is designed with an open frame construction and is intended for chassis mounting.
Key electrical characteristics include a single output and features like universal input. The operating temperature range is -20°C to 80°C, with derating applied outside this range. Compliance includes RoHS3, MSL 1, and REACH unaffected status, though confidence in these is low due to unverified data.
12V DC.
16.67A.
4000V (4kV).
92%.
-20°C to 80°C with derating.
Yes, it features universal input.
Chassis mount.
