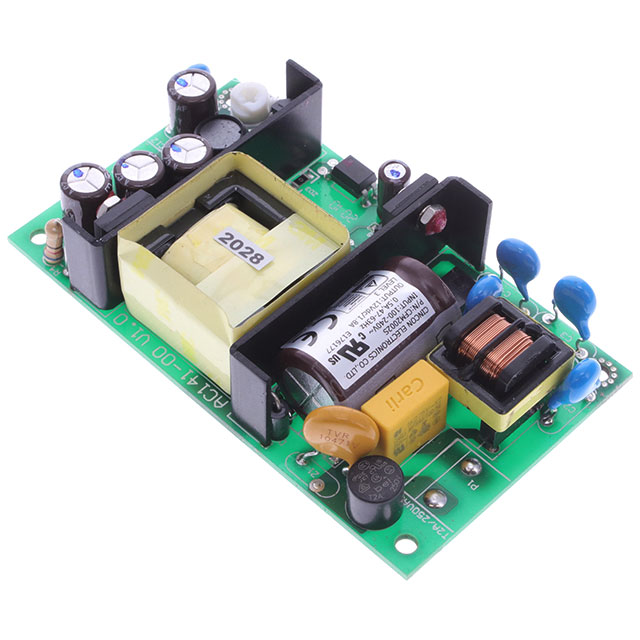

The Cincon CFM2002S-P is an AC/DC converter designed for commercial ITE applications. It operates with a universal input voltage range of 85 to 264 VAC and provides a single 12V output with a maximum current of 1.8A, delivering a total power of 22W.
This open frame converter features a high efficiency of 79% and offers good regulation with ±1% load regulation and ±0.5% line regulation. The operating temperature range is from 0°C to 70°C with derating. Its dimensions are 88.9mm x 50.8mm x 25.4mm.
Designed for through-hole mounting, the CFM2002S-P is approved by CE, cURus, and TUV, adhering to standard 60950-1. It is suitable for various commercial and industrial applications requiring a reliable power conversion solution.
The output voltage is 12V.
The maximum output current is 1.8A.
The input voltage range is 85 to 264 VAC.
The power rating is 22W.
The operating temperature range is 0°C to 70°C with derating.
The package is a Module.
It is mounted using the Through Hole method.
