| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

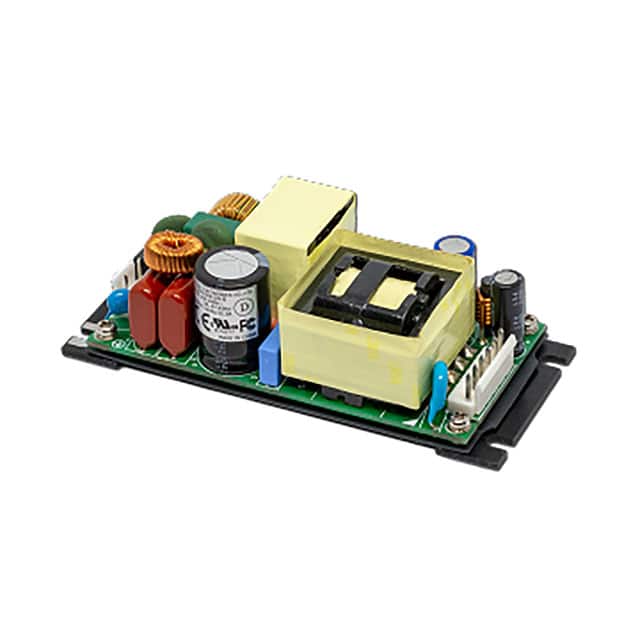

This AC/DC converter from Cincon Electronics, model CFM150S280-B, is an open-frame unit with a power output of 120W and a voltage of 28V. It features a chassis mount type and an efficiency rating of 94%.
Key features include adjustable output, baseplate, and universal input capabilities. The operating temperature range is -30°C to 80°C with derating. The converter has an isolation voltage of 3 kV and is suitable for applications such as household appliances and ITE commercial equipment.
With dimensions of 116.8mm x 50.8mm x 34.6mm, this converter offers a compact solution for power conversion needs. It has a current rating of 4.28A and is compliant with RoHS3 standards.
28V.
94%.
3kV.
-30°C to 80°C with derating.
Chassis mount.
116.8mm x 50.8mm x 34.6mm.
CE, cURus, DEMKO, and FCC.
