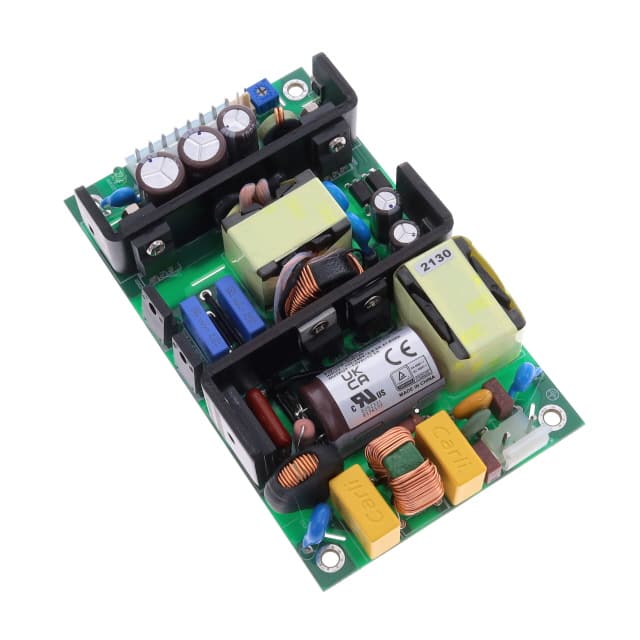

The Cincon CFM150M480 is an open frame AC DC converter designed for external or internal power supply applications. It delivers 150W of power with a single 48V output at 3.13A.
Key electrical specifications include a wide input voltage range of 90-264 VAC, ensuring universal compatibility. The converter boasts high efficiency of 93% and features like adjustable output, Power Factor Correction (PFC), remote sense, and universal input.
Designed for robust performance, it operates within a temperature range of -20°C to 70°C with derating. The unit is chassis mounted and has dimensions of 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm).
This AC DC converter is approved by CE, cURus, FCC, and TUV, making it suitable for ITE (Commercial) and Medical applications. It is RoHS3 compliant.
The output voltage is 48V.
The output current is 3.13A.
The power rating is 150W.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 127.0mm x 76.2mm x 26.7mm (5.00" x 3.00" x 1.05").
It holds CE, cURus, FCC, and TUV approvals for ITE (commercial) and medical applications.
