| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

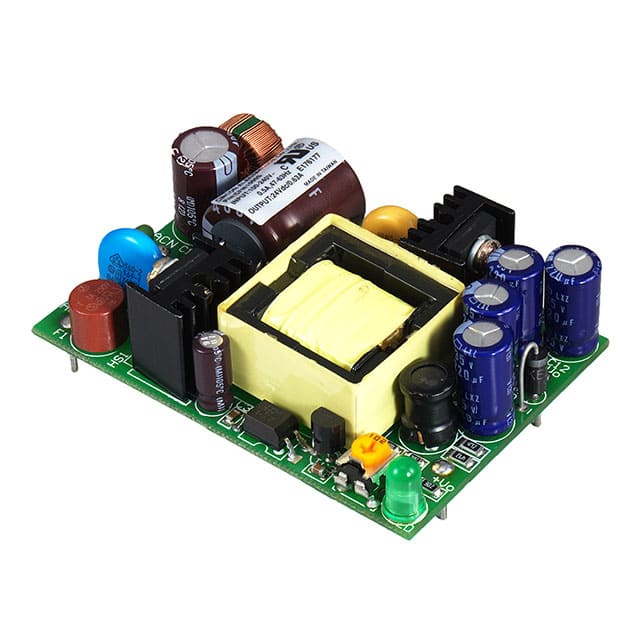

The Cincon Electronics Co. LTD CFM1501S is an AC DC converter designed for ITE (Commercial) applications. This open frame module features a universal input voltage range of 85 to 264 VAC and provides 15W of power with a single output current of 3A.
With an efficiency of 74%, the CFM1501S operates within a temperature range of 0°C to 70°C with derating. Its mechanical dimensions are 69.9mm in length, 48.0mm in width, and 23.0mm in height. The module is designed for through-hole mounting.
Key specifications include compliance with standards such as 60950-1 and approvals from CE, cURus, and TUV. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
The input voltage range is 85 to 264 VAC.
The power output is 15 W.
The output current is 3A.
The operating temperature is 0°C to 70°C with derating.
It uses through hole mounting.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
