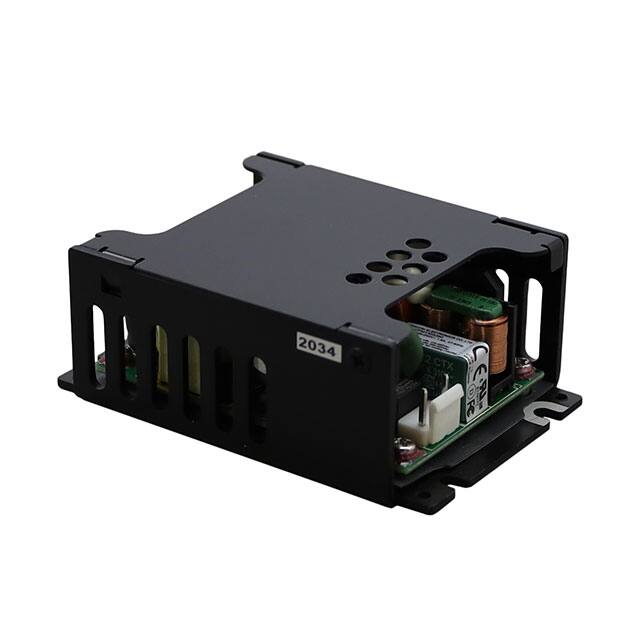

The Cincon Electronics CFM130S360-C is an enclosed AC/DC converter designed for applications requiring a stable 36V output at up to 101W of power. This unit boasts a high efficiency of 94%, contributing to reduced energy consumption and heat generation.
Key features include a universal input, PFC (Power Factor Correction), and a standby output, making it suitable for various ITE (Commercial) and household appliance applications. The converter is designed for chassis mounting and has dimensions of 91.4mm x 64.0mm x 34.5mm.
It operates within a temperature range of -30°C to 70°C with derating and has a dielectric strength of 4kV. The CFM130S360-C complies with safety standards such as 60335-1, 60601-1, and 62368-1, and holds certifications from CE, cURus, DEMKO, and FCC.
36V at 2.8A.
101W (130W with forced air cooling).
-30°C to 70°C with derating.
Chassis mount.
60335-1, 60601-1, and 62368-1.
Yes, it includes power factor correction.
CE, cURus, DEMKO, and FCC.
