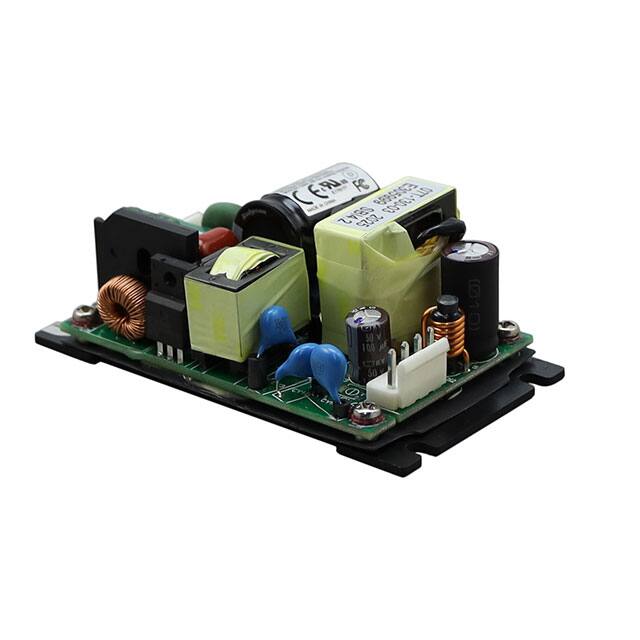

This Cincon Electronics CFM130S360-B is an AC/DC converter designed for various applications, including household appliances and ITE commercial use. It operates with an input voltage range suitable for universal use and provides a stable 36V output.
The converter boasts a high efficiency of 94% and an output current of 2.8A, delivering up to 101W of power, or 130W with forced air. Key features include PFC, a standby output, and universal input capability. The isolation voltage is rated at 4kV.
Designed for easy integration, this unit features a chassis mount type and an open frame construction. Its dimensions are 91.4mm in length, 50.8mm in width, and 33.0mm in height. The operating temperature range is from -30°C to 70°C, with derating applied at higher temperatures.
Compliance certifications include CE, cURus, DEMKO, and FCC. It meets standards such as 60335-1, 60601-1, and 62368-1. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is MSL 1.
The output voltage is 36V and the output current is 2.8A.
The converter is rated for 101W continuous power, with 130W available under forced air cooling.
Efficiency is 94%.
The operating temperature range is -30°C to 70°C with derating.
It uses chassis mount.
