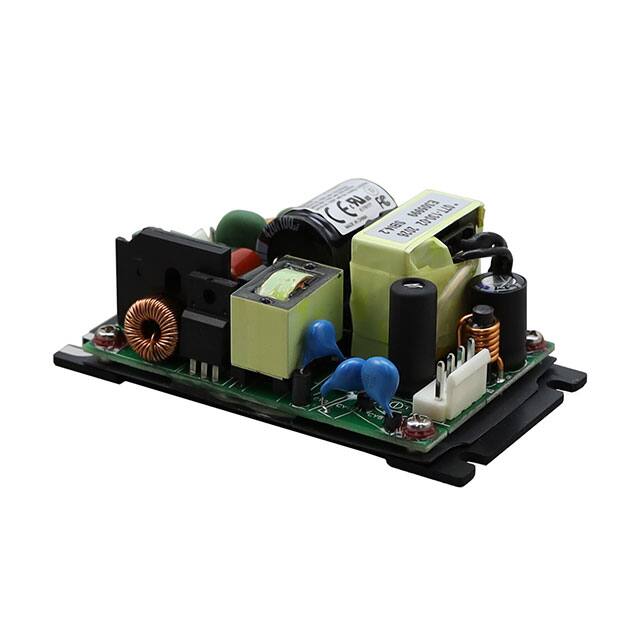

The Cincon Electronics CFM130S240-B is an AC/DC converter designed for various applications, including household appliances and ITE commercial equipment. This open frame unit offers a power output of 101W, with a forced air rating of 130W, and provides a 24V output.
Key electrical specifications include a universal input, Power Factor Correction (PFC), and a standby output. The converter operates with an efficiency of 93% and features an isolation voltage of 4 kV. Its operating temperature range is -30°C to 70°C, with derating applied.
Mechanically, the CFM130S240-B is designed for chassis mounting and has dimensions of 91.4mm x 50.8mm x 33.0mm. It meets several safety and performance standards, including 60335-1, 60601-1, and 62368-1, and is approved by agencies such as CE, cURus, DEMKO, and FCC.
Environmental compliance includes RoHS3 compliance and an MSL of 1. The unit is designed for reliable operation in commercial and industrial environments.
The output is 24V DC at 4.2A.
101W with convection cooling, 130W with forced air cooling.
93% efficiency.
4kV isolation voltage.
-30°C to 70°C with derating.
91.4mm x 50.8mm x 33.0mm.
CE, cURus, DEMKO, FCC approvals. Complies with 60335-1, 60601-1, 62368-1.
