| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

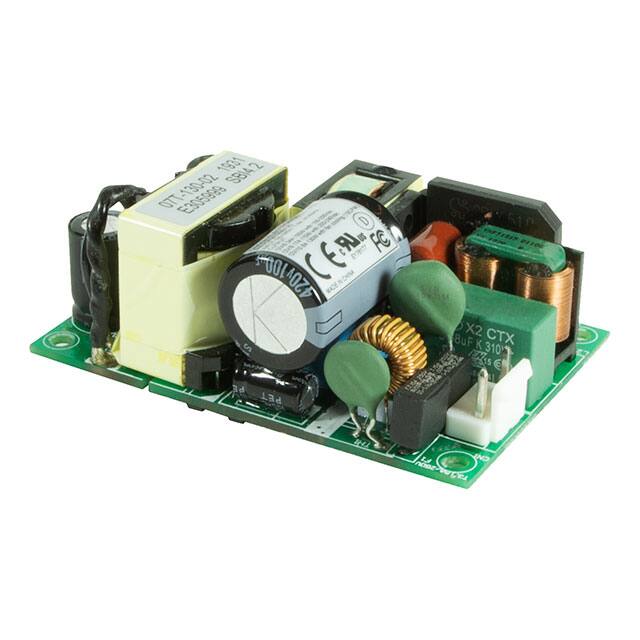

The Cincon Electronics CFM130S240 is an open frame AC/DC converter designed for household appliances and ITE commercial applications. It provides a 24V output voltage with a power rating of 101W, capable of reaching 130W with forced air.
This converter boasts high efficiency at 93% and features universal input, PFC, and a standby output. It is designed for chassis mounting and has dimensions of 76.2mm x 50.8mm x 30.5mm. The operating temperature range is -30°C to 70°C with derating.
Key electrical specifications include a current rating of 4.2A and an isolation voltage of 4kV. It is compliant with standards such as 60335-1, 60601-1, and 62368-1, and carries CE, cURus, DEMKO, and FCC agency approvals.
-30°C to 70°C with derating.
93%.
4 kV.
1 output.
Chassis mount.
CE, cURus, DEMKO, FCC.
60335-1, 60601-1, 62368-1.
