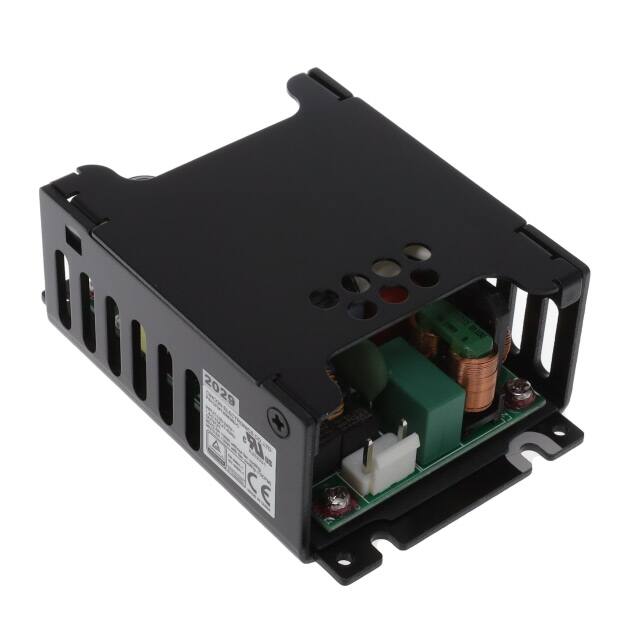

The Cincon CFM130M360-C is a 130 Watt (101W natural convection) AC-DC power supply designed for medical and household appliance applications. It operates with a universal input voltage range of 80 to 264Vac and provides a nominal output voltage of 36V at 2.8A.
This power supply boasts high efficiency up to 94% and features active PFC functionality. It includes continuous short circuit protection and can operate at altitudes up to 5000 meters. The compact 2"x 3" open frame size makes it suitable for integration into various systems.
Key specifications include a maximum input current of 1.8A at 100Vac, ripple and noise of 360mV, voltage accuracy of ±2%, line regulation of ±0.5%, and load regulation of ±1%. The operating temperature range is -30°C to 70°C with derating. Safety approvals include CE, cURus, FCC, and TUV, meeting IEC/EN/UL 60601-1 2 MOPP standards.
The CFM130M360-C has a nominal output voltage of 36 Vdc.
The typical output current is 2.8 A, with a fan-cooled maximum of 3.6 A.
The universal input voltage range is 80 to 264 Vac.
The typical efficiency is 94%.
The operating temperature range is -30°C to 70°C with derating.
Yes, the RoHS status is RoHS3 Compliant.
