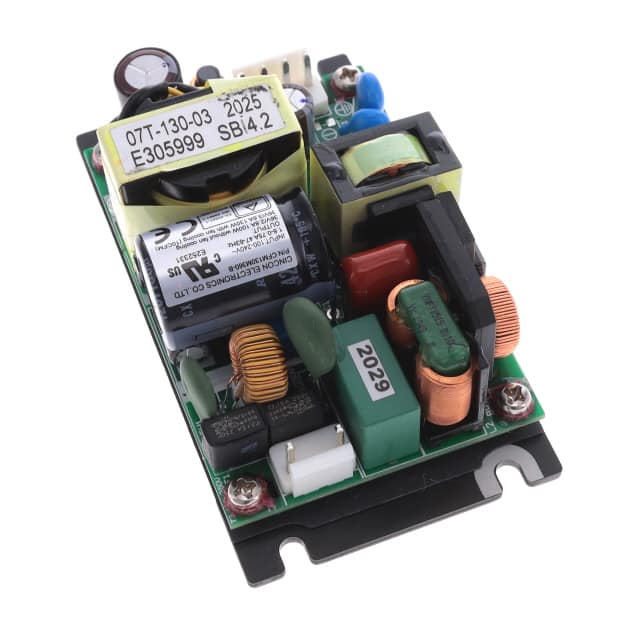

The Cincon CFM130M360-B is a 130 Watt (101W natural convection) medical AC-DC power supply with Active PFC. It operates with a universal input range of 80-264Vac and offers a nominal output voltage of 36Vdc at 2.8A.
Key specifications include a high efficiency of up to 94%, a compact 2"x 3" open frame size, and compliance with IEC/EN/UL 60601-1 2 MOPP safety standards. The power supply is designed for applications requiring reliable power conversion, such as in household appliances and medical equipment.
This open frame unit is suitable for chassis mounting and operates within a wide temperature range of -30°C to 70°C. It also features continuous short circuit protection and meets specific radiation compliance standards for Class I and Class II operation.
The nominal output voltage is 36Vdc.
The maximum output current is 2.8A under natural convection and 3.6A with fan cooling.
The typical efficiency is 94%.
The operating temperature range is -30°C to 70°C.
The dimensions are 91.4mm x 50.8mm x 33.1mm.
Yes, it features an Active PFC Function.
