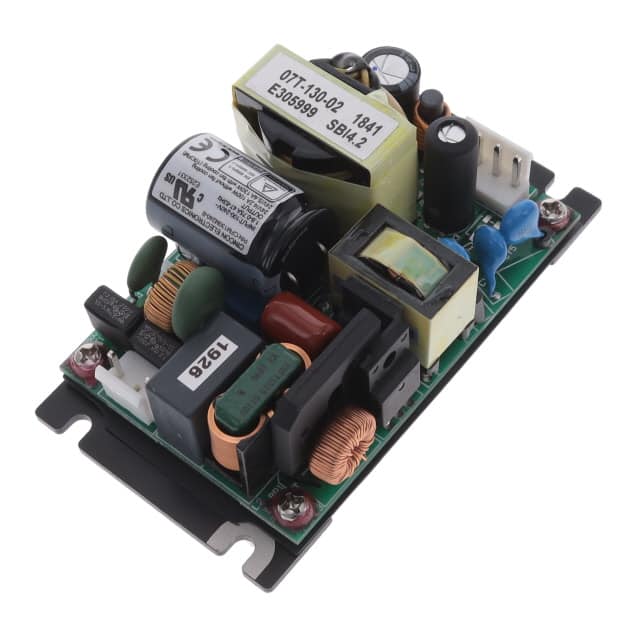

The Cincon CFM130M240-B is an open-frame AC/DC power supply designed for medical and household appliance applications. It provides a nominal output voltage of 24V at up to 4.2A, delivering 101W of power, with a peak capability of 130W using forced air.
This converter operates with a universal input voltage range of 80-264Vac and boasts a high efficiency of up to 93%. Key features include active PFC, continuous short circuit protection, and an operating altitude of up to 5000 meters. The unit is designed for chassis mounting and has an operating temperature range of -30°C to 70°C with derating.
With safety approvals including CE, cURus, FCC, and TUV, and compliance with IEC/EN/UL 60601-1 2 MOPP standards, this power supply is suitable for demanding applications. Its compact 2"x 3" open frame size and features like baseplate cooling make it a versatile component for integration into various systems.
The input voltage range is 80-264Vac at 47-63Hz.
The output voltage is 24Vdc (23.52-24.48Vdc) and the maximum output current is 4.2A.
The operating temperature range is -30°C to +70°C with derating.
Typical efficiency is 93% at 230Vac and 75% full load.
The mounting type is chassis mount and the package is open frame.
Dimensions are 91.4mm (3.60") length, 50.8mm (2.00") width, and 33.1mm (1.30") height.
The input-to-output isolation voltage is 4kV.
