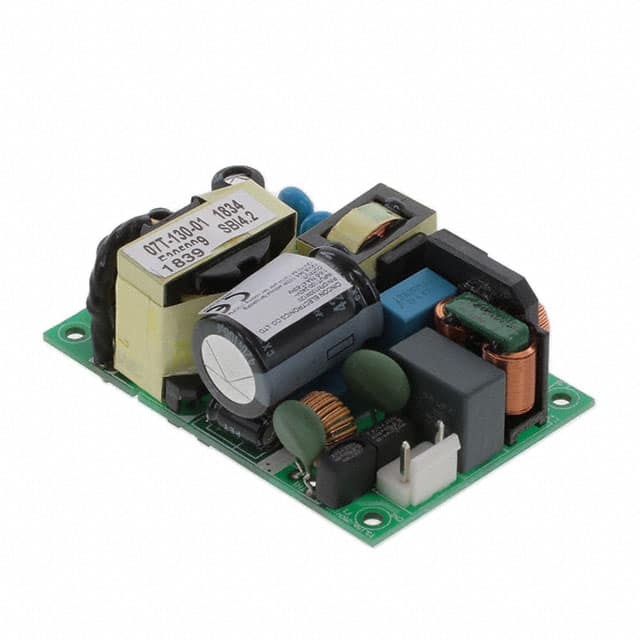

The Cincon CFM130M240 is a 130 Watt AC/DC power supply designed for medical and household appliance applications. It operates with a universal input range of 80-264Vac and provides a nominal output voltage of 24V at 4.2A, delivering 101W of power under natural convection and up to 130W with fan cooling.
Key features include high efficiency up to 94%, active PFC function, and continuous short circuit protection. The power supply meets IEC/EN/UL 60601-1 safety standards and operates at altitudes up to 5000m. It has a compact 2"x 3" open frame size and is suitable for chassis mounting.
This series offers robust performance with a wide operating temperature range from -30°C to 70°C. It supports both Class I and Class II configurations and meets Class B radiation standards for Class I and Class II, and Class A for Class II. The unit also boasts low no-load input power consumption, less than 150mW.
The input voltage range is 80-264 Vac.
The output voltage is 24 Vdc with a tolerance of ±2%.
The operating temperature range is -30°C to 70°C with derating.
The converter is an open frame package for chassis mount.
Typical efficiency is 93% at 230Vac and 75% load.
Yes, it is approved to IEC/EN/UL 60601-1 2 MOPP.
Dimensions are 76.2mm x 50.8mm x 30.5mm (2"x3"x1.2").
