CFM130M120-C

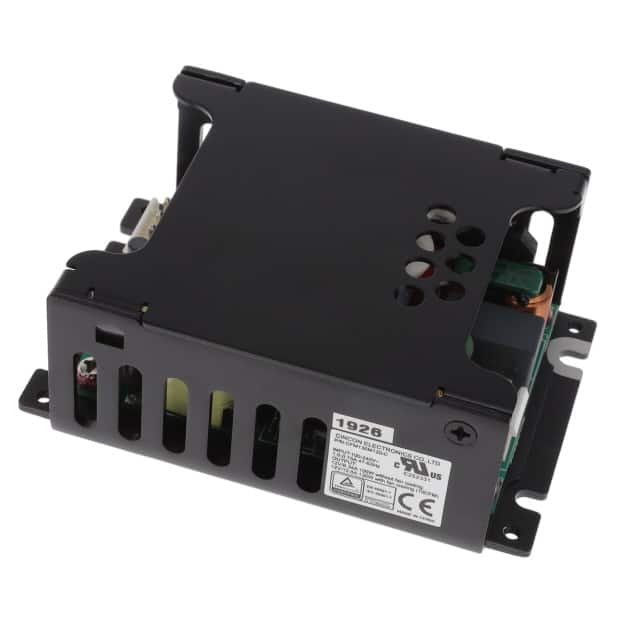

The Cincon CFM130M120-C is a 130 Watt AC-DC power supply from the CFM130M series, specifically designed for medical applications. This open-frame, enclosed unit offers a nominal 12V output voltage with a continuous current rating of 8.34A, providing 100W of power under natural convection cooling and up to 130W with fan cooling.

Key electrical specifications include a universal input voltage range of 80-264Vac and an input frequency range of 47-63Hz. The power supply boasts high efficiency, up to 94% typical at 230VAC, and features active Power Factor Correction (PFC). It operates within a wide temperature range of -30°C to 70°C with derating and can function at altitudes up to 5000m.

Designed for reliability and safety, the CFM130M120-C meets IEC/EN/UL 60601-1 safety approvals for 2 MOPP. It includes features such as continuous short circuit protection and low no-load power consumption (<150mW). The compact size of 3.60" x 2.52" x 1.36" makes it suitable for various integration needs, with a chassis mount type.

This power supply is ideal for applications requiring stable and efficient power conversion, particularly in the medical field due to its safety certifications and suitability for medical equipment. It also finds use in household appliances and other general industrial applications.
