| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

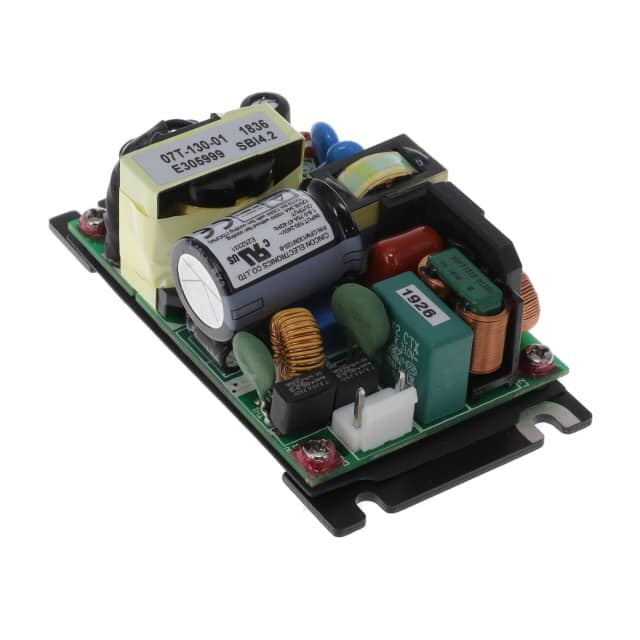

The Cincon CFM130M120-B is a 130 Watt Medical AC-DC Power Supply with Active PFC, designed for versatile applications. This open frame unit offers a universal input range of 80-264Vac and a nominal output voltage of 12Vdc with a maximum current of 8.34A. It boasts high efficiency up to 94% and a compact 2"x 3" size.
Key features include continuous short circuit protection, Class I & Class II compliance, and an operating altitude of 5000m. The power supply operates with 100W natural convection or 130W with fan cooling. It is suitable for applications requiring medical safety approvals like IEC/EN/UL 60601-1 2 MOPP.
Designed for chassis mounting, this power supply is ideal for household appliances and medical equipment. Its robust specifications ensure reliable performance in demanding environments.
-30°C to 70°C with derating.
80-264Vac.
12V output at 8.34A, 100W continuous.
91.4mm x 50.8mm x 33.1mm.
IEC/EN/UL 60601-1 2 MOPP, CE, cURus, FCC, TUV.
93% typical.
