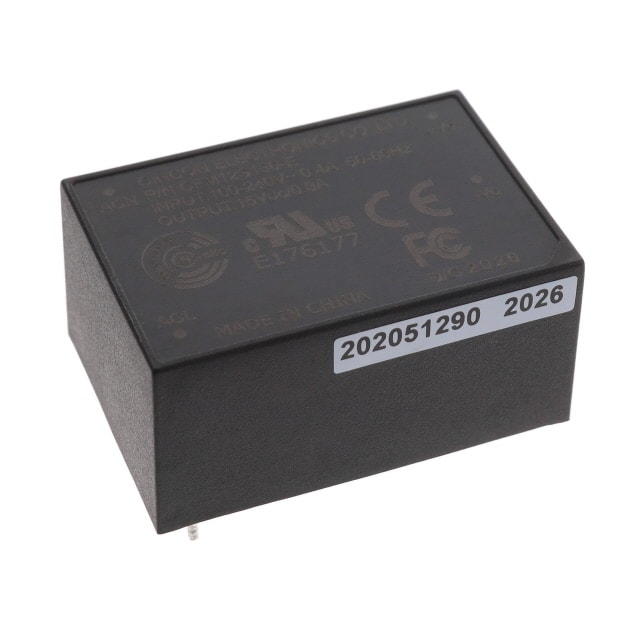

This AC/DC converter from Cincon Electronics, part number CFM12S150-E, is designed for applications requiring a reliable power supply. It features a 12W power rating and accepts a wide input voltage range from 90 to 264 VAC, making it suitable for global use.
The converter delivers an output current of 800mA and is designed with an open frame type. Its Through Hole mounting allows for secure integration into various electronic assemblies. The operating temperature range is from -40°C to 75°C with derating, ensuring performance in diverse environmental conditions.
Key specifications include a single output, 85% efficiency, and compliance with standards such as 60335-1 and 62368-1. Approval agencies include CE, cURus, FCC, and Nemko, indicating adherence to safety and performance requirements.
Applications for this converter include household appliances and ITE (Commercial) equipment, where its universal input and robust design are beneficial. The package is a 4-DIP module, and it is RoHS3 compliant.
90-264 VAC.
800mA.
12W.
85%.
-40°C to 75°C (with derating).
4-DIP Module.
Through Hole.
