| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1,858 pcs
$0.02
|
1858 pcs |
$0.02
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Dielectric Withstanding Voltage | |
| Features | |
| Halogen Free | |
| Maximum Overload Voltage | |
| Maximum Working Voltage | |
| Number of Terminations | |
| Ohmic Range | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating (Nominal @ 70 °C) | |
| Resistance | |
| Supplier Device Package | |
| Supplier Package | |
| Temperature Coefficient | |
| Tolerance |

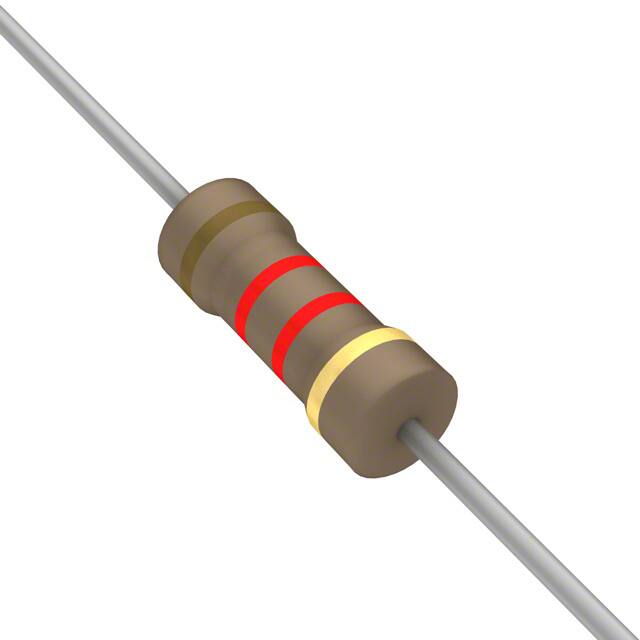

This Stackpole Electronics Inc. CFM12JT1K20 is a general-purpose carbon film resistor designed for commercial and industrial applications. It features an axial package with dimensions of 0.091" Dia x 0.256" L (2.30mm x 6.50mm).
The resistor offers a power rating of 0.5W at 70°C and a resistance value of 1.2 kΩ with a tolerance of ±5%. The temperature coefficient is specified as 0/ -400ppm/°C, and it can operate within a wide temperature range of -55°C to 155°C.
Key electrical specifications include a maximum working voltage of 350V, a maximum overload voltage of 600V, and a dielectric withstanding voltage of 350V. The component is constructed with a carbon film composition and includes features such as a flame retardant coating and safety compliance.
This component is suitable for various through-hole applications where reliable general-purpose resistance is required. Its construction and specifications make it a suitable choice for standard electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1.2 kΩ.
The power rating is 0.5W at 70°C.
The tolerance is ±5%.
The operating temperature range is -55°C to 155°C.
The dimensions are 0.091" Dia x 0.256" L (2.30mm x 6.50mm).
The temperature coefficient is 0/ -400ppm/°C.
The maximum working voltage is 350V.
