| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

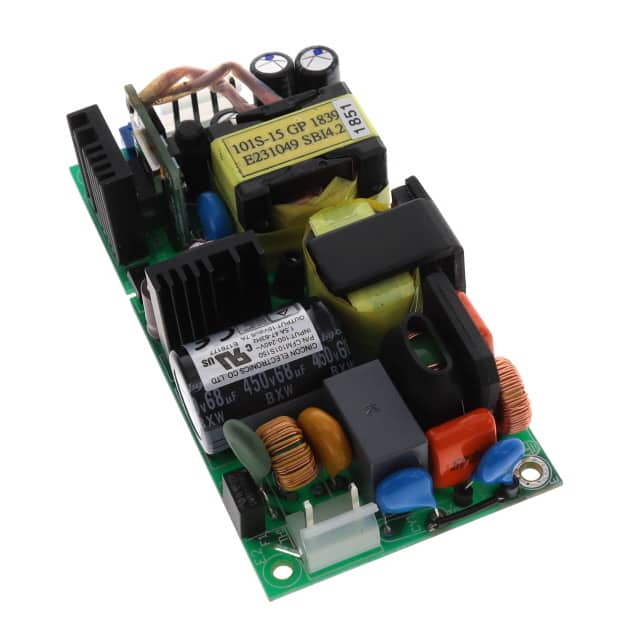

The Cincon CFM101S150 is an AC/DC converter designed for commercial ITE applications. This open-frame unit provides a 15V output voltage with a maximum current of 6.7A, delivering a total power of 101W. It operates with an efficiency of 88% and features universal input voltage ranging from 90 to 264 VAC.
Key features include adjustable output, power factor correction (PFC), and universal input. The converter is designed for chassis mounting and has dimensions of 101.6mm x 50.8mm x 27.9mm. The operating temperature range is 0°C to 70°C with derating. Isolation voltage is rated at 4.242 kV.
Certifications include CE, cURus, FCC, and TUV, indicating compliance with various safety and performance standards. The CFM101S150 is suitable for applications requiring a reliable and efficient power conversion solution in a compact, open-frame form factor.
The CFM101S150 provides a 15V output voltage.
The CFM101S150 has a power rating of 101W.
The CFM101S150 accepts a universal input voltage range of 90 to 264 VAC.
The operating temperature range for the CFM101S150 is 0°C to 70°C, with derating.
The CFM101S150 is designed for chassis mounting.
Key features include adjustable output, PFC, and universal input.
