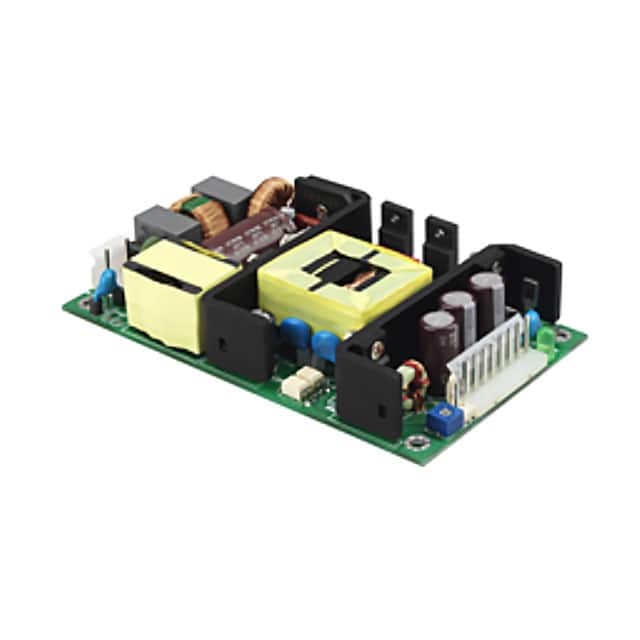

The Cincon Electronics CFM100M360 is a 101W open-frame AC/DC power module designed for medical and ITE applications. It operates with a universal input voltage range of 90-264V ac and features active Power Factor Correction (PFC) that meets EN61000-3-2 standards.
This converter provides a stable 36V output voltage at a maximum load of 2.8A, delivering up to 101W of power. Key electrical specifications include a typical efficiency of 91%, ±1% voltage accuracy, ±0.5% line regulation, and ±1% load regulation. It also offers features such as remote voltage sense, over-voltage protection, and continuous short-circuit protection.
The CFM100M360 has a compact 3"x5" footprint and is less than 1U high, making it suitable for space-constrained designs. It is designed for chassis mounting and operates within a temperature range of -20°C to 70°C with derating. The module meets 2MOPP and Class I requirements, along with CISPR/FCC Class B emissions standards.
The CFM100M360 has an output voltage of 36V.
The maximum load current for the CFM100M360 is 2.8A.
The CFM100M360 has a power rating of 101W.
The input voltage range for the CFM100M360 is 90-264V ac or 120-370V dc.
The typical efficiency of the CFM100M360 is 91% at 230VAC and full load at 25°C.
The operating temperature range for the CFM100M360 is -20°C to 70°C with derating.
The CFM100M360 offers over voltage protection, continuous short circuit protection (Hiccup Mode), and adjustable output voltage.
