| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

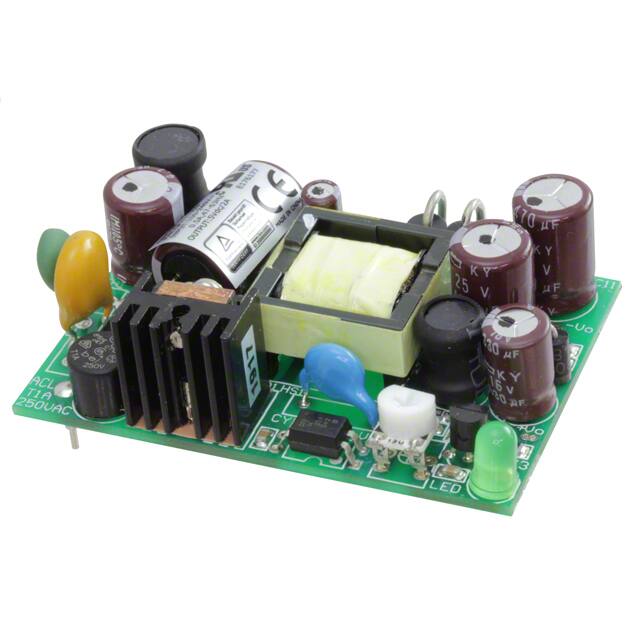

The CFM1009S from Cincon Electronics Co. LTD is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a 10W output power with a single output and a current rating of 1.12A.
The converter operates with an input voltage range of 85 to 264 VAC and features universal input capabilities. Its efficiency is rated at 72%.
Designed for easy integration, the CFM1009S utilizes a through-hole mounting type and comes in a module package. The dimensions are 65.0mm in length, 45.0mm in width, and 23.0mm in height.
Operating temperature ranges from 0°C to 70°C with derating. The product is compliant with standard 60950-1 and carries CE, cURus, and TUV agency approvals.
85 to 264 VAC.
Module.
0°C to 70°C with derating.
9V.
1.12A.
10W.
CE, cURus, TUV.
