| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

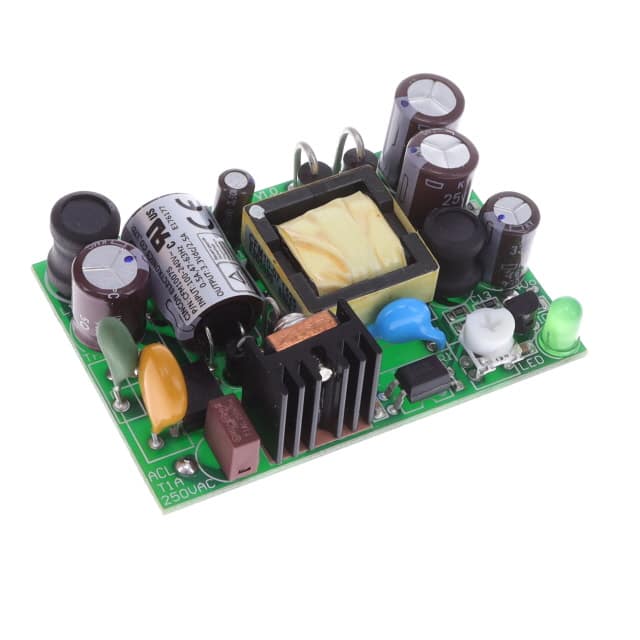

The CFM1007S from Cincon Electronics Co. LTD is an AC/DC converter designed for ITE (Commercial) applications. This open-frame module provides a 10W power output with a 2.5A current rating and a universal input voltage range of 85 to 264 VAC.
Key electrical specifications include an efficiency of 67% and a single output. The device operates within a temperature range of 0°C to 70°C, with derating. It meets the standard number 60950-1 and carries CE, cURus, and TUV agency approvals.
Mechanically, the CFM1007S features a compact design with dimensions of 65.0mm x 45.0mm x 23.0mm. It is designed for through-hole mounting, making it suitable for various board-level integration needs. The converter is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The input voltage range is 85 to 264 VAC.
The output voltage is 3.3V.
The package type is Module.
The operating temperature range is 0°C to 70°C with derating.
The typical efficiency is 67%.
It has CE, cURus, and TUV approvals.
The dimensions are 65.0mm x 45.0mm x 23.0mm.
