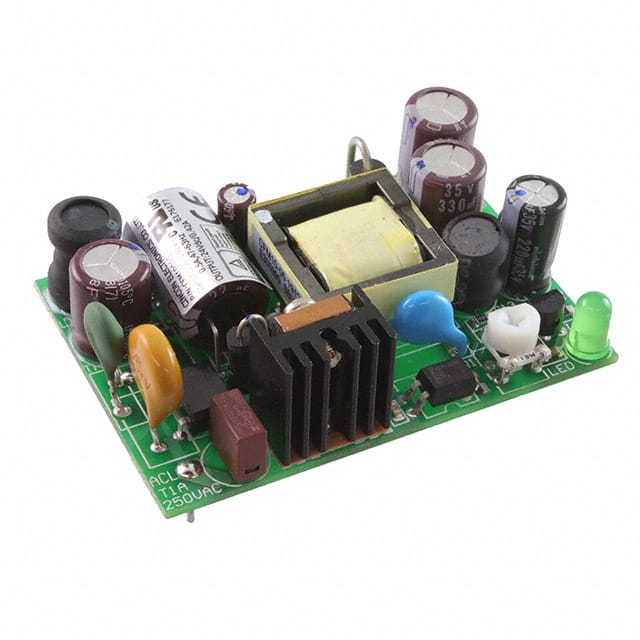

The Cincon Electronics CFM1005S is an open frame AC/DC converter with a power rating of 10W. It accepts a wide input voltage range from 85 to 264 VAC, making it suitable for universal applications. This module-type converter is designed for Through Hole mounting.
Key electrical specifications include a single output and an output current of 420mA. The converter operates efficiently at 77% and features universal input capabilities. It is approved by CE, cURus, and TUV, and complies with standard number 60950-1.
Mechanically, the CFM1005S has dimensions of 65.0mm in length, 45.0mm in width, and 23.0mm in height. It operates within a temperature range of 0°C to 70°C, with derating. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited. REACH status is REACH Unaffected.
This converter is suitable for ITE (Commercial) applications, providing a reliable power solution for various electronic devices.
The input voltage range is 85 to 264 VAC.
The power output is 10 W.
The CFM1005S uses Through Hole mounting.
The operating temperature range is 0°C to 70°C (With Derating).
The RoHS Status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
