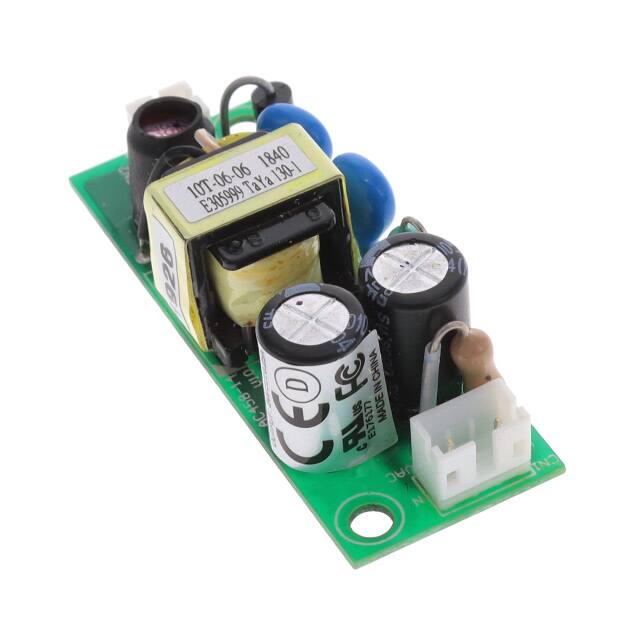

The Cincon CFM06S240-T is a 6W AC/DC converter designed for chassis mount applications. It accepts a universal AC input of 90-264 Vac or a DC input of 120-370 Vdc, making it suitable for global use. The single output provides 24 Vdc at 0.25 A with a typical efficiency of 83%.
The converter features continuous short circuit protection and over voltage protection for reliable operation. It operates over a wide temperature range of -40°C to 80°C with derating, and is rated for altitudes up to 5000 m. The package is a compact wafer style measuring 49.5 mm x 18.5 mm x 15.0 mm.
The AC input range is 90-264 Vac and the DC input range is 120-370 Vdc.
The output voltage is 24 Vdc and the output current is 0.25 A.
The operating temperature range is -40°C to 80°C with derating.
It includes continuous short circuit protection and over voltage protection.
It is a chassis mount wafer package.
