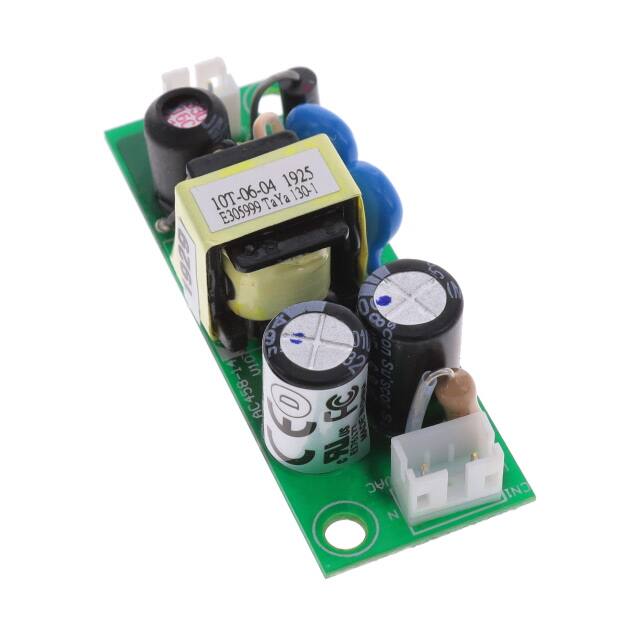

The Cincon CFM06S120-T is a 6-watt open-frame AC-DC power module designed for various applications. It offers a single 12V DC output at 0.5A, with a nominal output voltage accuracy of ±3% and load regulation of ±3%. The module operates with a universal input voltage range of 90-264Vac and achieves a typical efficiency of 81% at full load.
Key features include continuous short circuit protection and over-voltage protection. The compact size and open-frame construction make it suitable for integration into systems where space is a consideration. It is designed to meet IEC/EN/UL 62368-1 standards and operates within a wide temperature range of -40°C to 80°C.
This converter is suitable for applications such as household appliances and ITE commercial equipment. It has an operating altitude rating of up to 5000m for OVC II conditions. The chassis mount type facilitates easy installation.
The CFM06S120-T has a nominal output voltage of 12 Vdc.
The maximum output current for the CFM06S120-T is 0.5 A.
This AC/DC converter has a power rating of 6W.
The CFM06S120-T accepts a universal input voltage range of 90-264 Vac.
The typical efficiency of the CFM06S120-T is 81%.
The operating temperature range for the CFM06S120-T is -40°C to 80°C (With Derating).
The dimensions of the CFM06S120-T are 49.5mm (Length) x 18.5mm (Width) x 15.0mm (Height).
