| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Class | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

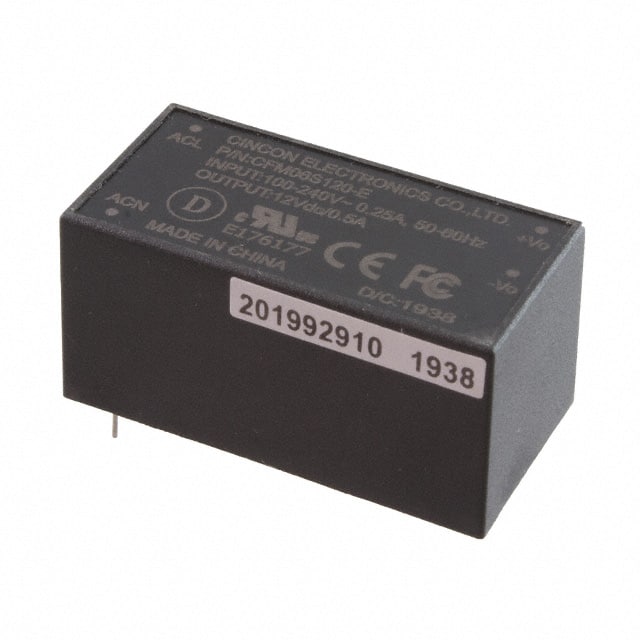

The Cincon CFM06S120-E is a 6-watt open-frame AC-DC module designed for reliable power conversion. It accepts a universal input voltage range of 90 to 264Vac, making it suitable for global applications. This converter provides a stable 12Vdc output at a maximum current of 0.5A.
Key electrical specifications include an efficiency of up to 81% at full load and 25℃, with a low no-load power consumption of less than 0.075W. It is equipped with continuous short circuit protection and over voltage protection, meeting Over Voltage Category OVC II and OVC III standards.
Designed for Through Hole mounting, the CFM06S120-E comes in a 4-DIP Module package. It operates within a wide temperature range of -40°C to 80°C with derating and meets safety approvals including CE, cURus, D-Mark, and FCC. The device is also compliant with EMC standards EN 55032 Class B and CISPR/FCC Class B.
This AC/DC converter is suitable for applications such as household appliances and ITE (Commercial) equipment, offering a robust and efficient power solution.
The CFM06S120-E provides a nominal output voltage of 12 Vdc.
The maximum output current for the CFM06S120-E is 0.5 A.
The CFM06S120-E accepts a universal input voltage range of 90 to 264 Vac or 120 to 370 Vdc.
The operating temperature range for the CFM06S120-E is -40°C to 80°C, with derating.
The CFM06S120-E is supplied in a 4-DIP Module package and is designed for Through Hole mounting.
