| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

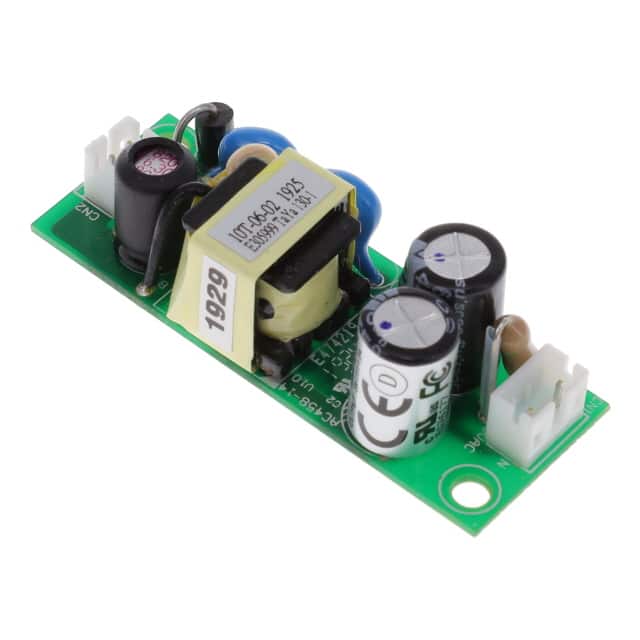

The Cincon Electronics Co. LTD CFM06S050-T is an open-frame AC/DC converter designed for various applications including ITE (Commercial) and Household Appliances. It provides a stable 5V DC output at 1.2A, delivering a total of 6W of power.
This converter operates with a universal input voltage range of 90-264Vac, making it suitable for global use. It boasts a high efficiency of up to 78% at 230Vac and 100% load, contributing to reduced energy consumption. Key electrical specifications include a line regulation of ±1% and a load regulation of ±5%. The ripple and noise are kept to a typical 100mV.
Designed for reliability, the CFM06S050-T includes continuous short circuit protection and over-voltage protection. It operates within a wide temperature range of -40°C to 80°C (with derating) and can function at altitudes up to 5000m. The compact dimensions of 49.5mm x 18.5mm x 15.0mm allow for easy integration into various systems. Mounting is typically chassis mount.
The output voltage is 5 Vdc with a nominal output current of 1.2 A.
The input voltage range is 90-264 Vac (47-63 Hz) or 120-370 Vdc.
The operating temperature range is -40°C to 80°C with derating.
The package is an open frame chassis mount design.
Yes, continuous short circuit protection is provided.
The typical efficiency is 78% at 230 Vac and full load.
The dimensions are 49.5mm (length) x 18.5mm (width) x 15.0mm (height).
