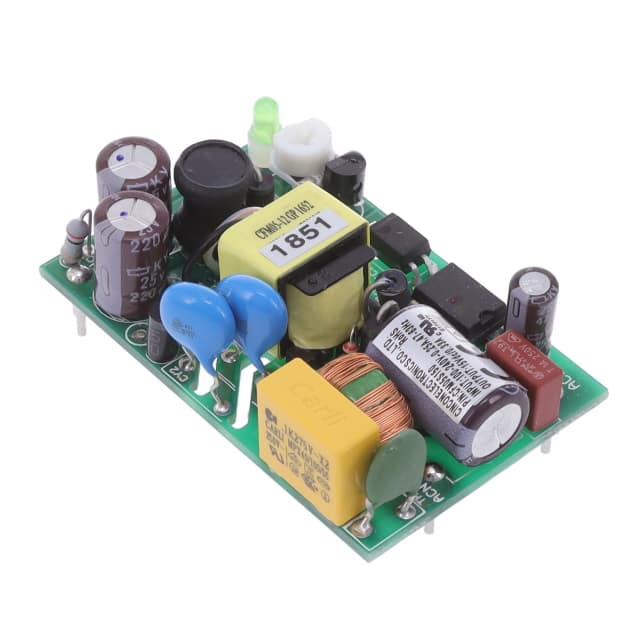

The CFM05S150 from Cincon Electronics Co., Ltd. is an open-frame AC/DC converter designed for commercial applications. It delivers a single 15VDC output at 0.33A, providing a total power of 5 Watts. The converter operates with a wide input voltage range of 85 to 264 VAC and has an efficiency of 78%.
This power module is suitable for ITE (Commercial) applications and features universal input. It has a compact mechanical design with dimensions of 55.0mm L x 35.0mm W x 21.0mm H. The operating temperature range is 0°C to 85°C with derating, and it is convection cooled.
Compliance is met with RoHS3 status and it is rated for 60950-1 standards, with approvals from CE, cURus, and TUV. The mounting type is through hole, making it suitable for PCB integration.
The CFM05S150 provides a single output voltage of 15 VDC.
The maximum output current is 0.33 A.
The power rating is 5 W.
The input voltage range is 85 VAC to 264 VAC.
The operating temperature range is 0°C to 85°C with derating.
It is mounted using the through-hole method.
The dimensions are 55.0mm L x 35.0mm W x 21.0mm H.
