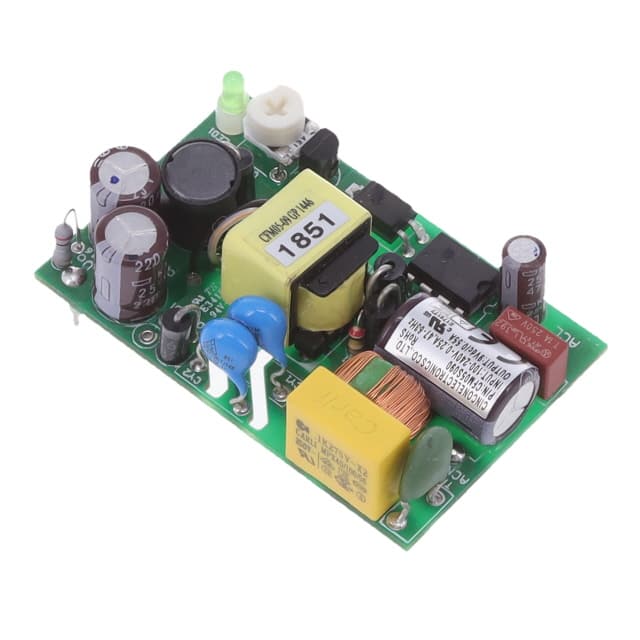

The Cincon Electronics CFM05S090 is an open-frame AC/DC converter designed for commercial ITE applications. It delivers a 9VDC output at 550mA, providing a total power of 5 Watts. The converter features a wide input voltage range of 85 to 264VAC and operates with an efficiency of 77%.
This model utilizes convection cooling and has a standard number of 60950-1. Its compact dimensions of 55.0mm L x 35.0mm W x 21.0mm H make it suitable for space-constrained designs. The operating temperature range is 0°C to 85°C with derating.
Key electrical parameters include a frequency range of 47 Hz to 63 Hz and a single output. The mounting type is through-hole, facilitating integration into various PCB designs. Compliance includes RoHS3, MSL 1, and REACH Unaffected status.
The CFM05S090 provides a 9.0VDC output at 0.55A.
The input voltage range is 85 VAC to 264 VAC.
The power rating is 5 Watts.
The efficiency is 77.00%.
The dimensions are 55.0mm in length, 35.0mm in width, and 21.0mm in height.
The operating temperature range is 0°C to 85°C with derating.
This converter uses through-hole mounting.
