| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

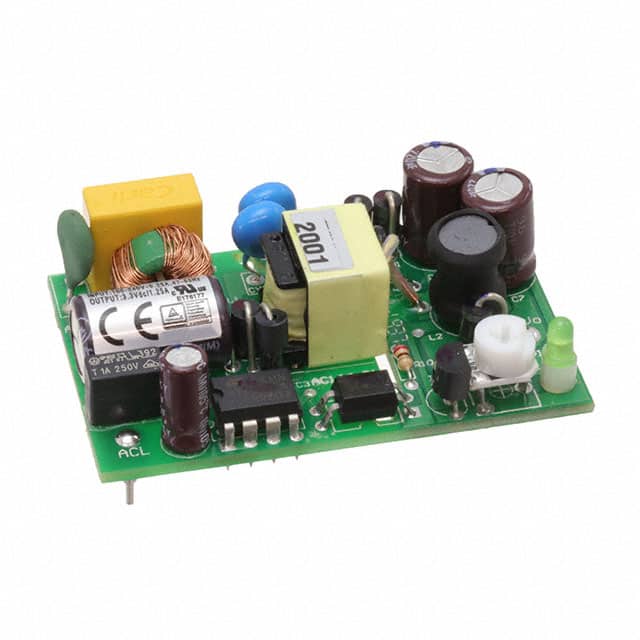

This Cincon Electronics CFM05S03 is an open-frame AC/DC converter designed for ITE commercial applications. It operates with a wide input voltage range of 85 to 264 VAC and delivers a 5W output power with a 1.25A current.
The converter has a compact module package and utilizes through-hole mounting for secure integration into electronic assemblies. Its dimensions are 55.0mm in length, 35.0mm in width, and 21.0mm in height. The operating temperature range is from 0°C to 85°C, with derating applied.
Key features include universal input capability and compliance with standards such as 60950-1. It is approved by CE, cURus, and TUV agencies, ensuring reliability for commercial use. The efficiency rating is 69%.
This model is RoHS3 compliant and has an MSL rating of 1, indicating unlimited moisture sensitivity. The REACH status is unaffected.
85 to 264 VAC.
3.3V.
1.25A.
Module, through-hole mount.
0°C to 85°C with derating.
CE, cURus, TUV.
69%.
