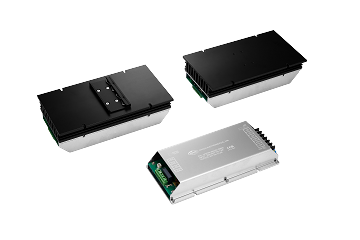

The Cincon CFB750-300S12N-CMFD is a high-power DC-DC converter module designed for demanding applications. It delivers a robust 750 Watts of power with a regulated 12V output and a maximum current of 62.5A.
This converter boasts an efficiency of up to 88% and provides 3000Vac I/O isolation. It is designed for chassis mounting and operates reliably within a wide temperature range of -40°C to +80°C, with derating as necessary.
Key features include regulated outputs, remote On/Off control, low no-load power consumption, and comprehensive protection against over-temperature (OTP), over-current (OCP), over-voltage (OVP), and under-voltage lockout (UVLO).
The unit complies with EN 55032/22 for EMC characteristics, MIL-STD-810F for shock and vibration, and EN 45545-2 for fire and smoke. Safety standards met include IEC/EN/UL 62368-1 with reinforced insulation. Its dimensions are 9.45" L x 4.33" W x 1.65" H (240.0mm x 110.0mm x 41.9mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CFB750-300S12N-CMFD provides a 12V output voltage at a maximum current of 62.5A.
The power rating for the CFB750-300S12N-CMFD is 750 Watts.
The operating case temperature range for the CFB750-300S12N-CMFD is -40°C to 80°C, with derating.
The dimensions are 9.45" L x 4.33" W x 1.65" H (240.0mm x 110.0mm x 41.9mm).
Yes, it meets IEC/EN/UL 62368-1 safety standards with reinforced insulation.
