| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

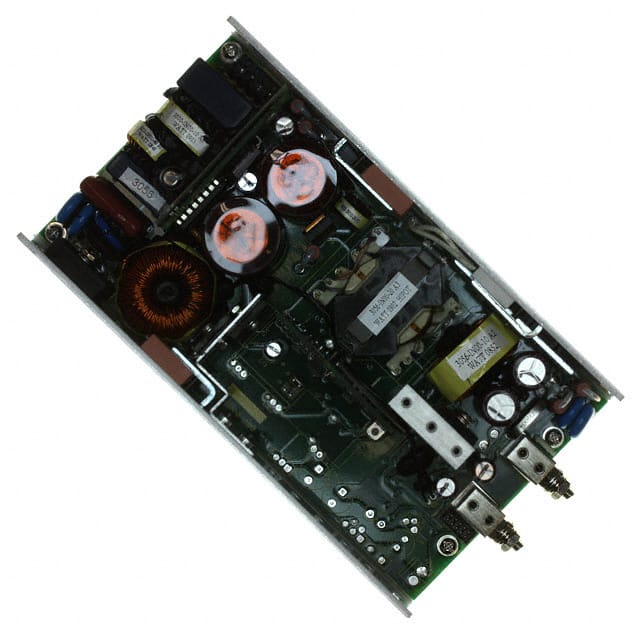

The Murata CF350-A24C is a 350-watt, high-density AC/DC power supply designed for ITE (Commercial) applications. It offers a universal AC input range of 85-265VAC with active power factor correction (PFC).
The power supply delivers a 24V main output with a maximum current of 14.5A and a 5V standby output. Key features include active load current sharing, ORing diode for N+1 parallel operation, remote sense capability for the 24V output, and hot-swappable functionality.
Built with a ruggedized U-channel construction, the CF350-A24C meets 1U height considerations, measuring 6.80 x 3.86 x 1.40 inches. It complies with worldwide safety and EMC standards, holding CE and cUR approvals.
This model is marked as an obsolete product. It is suitable for chassis mounting and offers features like adjustable output, load sharing, and remote sense.
The main output voltage is 24 Vdc.
The maximum output current for the 24V output is 14.5 A.
The standby output voltage is 5 Vdc.
The universal AC input voltage range is 85-264 Vac.
The efficiency is 87% at 230Vac and full load.
The dimensions are 6.80 x 3.86 x 1.40 inches (172.7mm x 98.0mm x 35.6mm).
The operating temperature range is -5°C to 70°C, with derating.
