| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

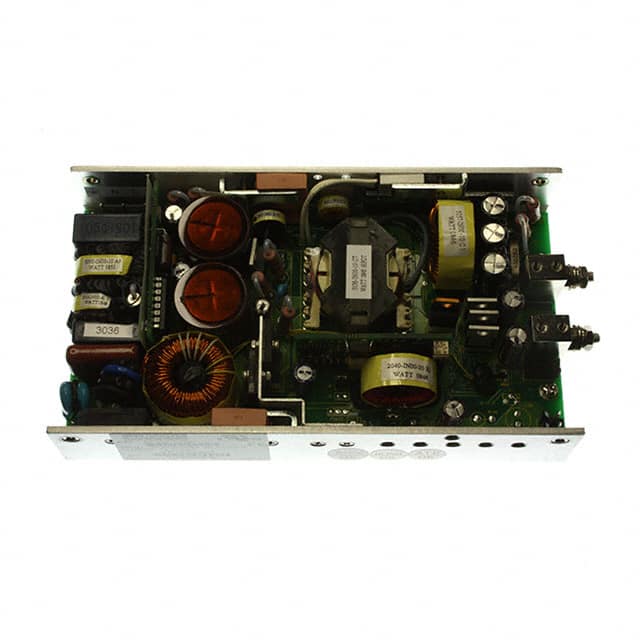

The Murata CF350-A12C is a 350 Watt high-density AC/DC power supply designed for compact applications, meeting 1U height considerations. Its U-Frame package measures 6.80 x 3.86 x 1.40 inches.
This power supply offers a universal AC input range of 85-265VAC with active power factor correction (PFC). It delivers a main output of 12V at up to 29A and a 5V standby output at up to 0.5A. Key electrical features include high efficiency (up to 87%), low ripple and noise, and active load current sharing for N+1 parallel operation.
The CF350-A12C is suitable for ITE (Commercial) applications and includes features like remote sense, hot-swappable capability, and international regulatory approvals (CE, cUR). It is designed for chassis mounting and has an open-frame construction.
Environmental compliance includes RoHS3 compliance and an MSL 1 rating. The product is noted as obsolete.
The main output voltage is 12V with a maximum current of 29A.
The standby output voltage is 5V with a maximum current of 0.5A.
The power supply accepts a universal AC input voltage range of 85 to 264 Vac.
The efficiency is 87% at 230Vac full load and 83% at 115Vac full load.
The dimensions are 172.7mm (6.80") in length, 98.0mm (3.86") in width, and 35.6mm (1.40") in height.
The operating temperature range is -5°C to 70°C, with derating applied.
Yes, it features active load current share and includes an ORing diode for N+1 parallel operation.
