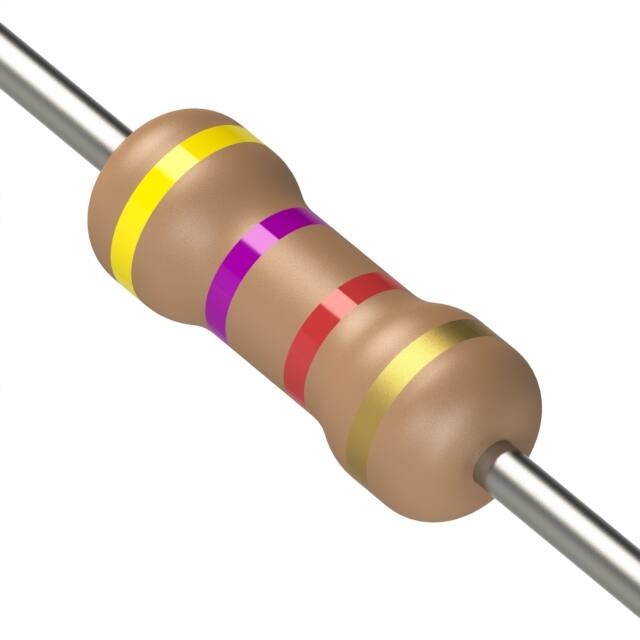

CF1/4CT52R472J The KOA Speer Electronics CF1/4CT52R472J is a carbon film resistor with 4.7 kΩ resistance and a ±5% tolerance. It has a power rating of 0.25W and an axial package.
Mfr Part #:

CF1/4CT52R472J

Available from 1 distributors
Mfr Name: KOA Speer Electronics
KOA Speer Electronics
The KOA Speer Electronics CF1/4CT52R472J is a carbon film resistor with 4.7 kΩ resistance and a ±5% tolerance. It has a power rating of 0.25W and an axial package.
✓ Total Stock: 10,000 pcs
$ Price Range: $0.05

CF1/4CT52R472J Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CF1/4CT52R472J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
View Similar Products (0)

CF1/4CT52R472J Description

Short technical summary and product information.

This KOA Speer Electronics CF1/4CT52R472J is a carbon film resistor designed for through-hole mounting. It offers a resistance value of 4.7 kΩ with a tolerance of ±5%. The component is rated for 0.25W of power at 70°C and operates within a temperature range of -55°C to 155°C.



The resistor features an axial package with dimensions of 0.091 inches in diameter and 0.240 inches in length (2.30mm x 6.10mm). Its temperature coefficient is -450ppm/°C to +350ppm/°C. The absolute maximum working voltage is 350V, with an absolute maximum overload voltage of 700V and a minimum dielectric withstanding voltage of 800V. Products with lead-free terminations meet EU RoHS and China RoHS requirements.

CF1/4CT52R472J Quick Information

Product Type: Through Hole Resistor
Canonical Name: KOA Speer Electronics CF1/4CT52R472J Carbon Film Resistor 4.7 kΩ ±5% 0.25W Axial
Subcategory: Carbon Film

CF1/4CT52R472J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CF1/4CT52R472J Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CF1/4CT52R472J Features

  • Carbon film resistor for through-hole mounting.
  • 4.7 kΩ resistance with ±5% tolerance.
  • 0.25W power rating at 70°C.
  • Wide operating temperature range of -55°C to 155°C.
  • Axial package dimensions: 0.091" Dia x 0.240" L.

CF1/4CT52R472J Applications

  • Suitable for precision resistor applications in circuits.
  • Used in power supply and voltage regulation circuits.
  • Ideal for signal filtering and noise reduction.
  • Applicable in thermal and environmental monitoring devices.

CF1/4CT52R472J FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CF1/4CT52R472J resistor?

The resistance value is 4.7 kΩ.

What is the tolerance of the CF1/4CT52R472J resistor?

The tolerance is ±5%.

What is the power rating of the CF1/4CT52R472J resistor?

The power rating is 0.25W at 70°C.

What is the operating temperature range for the CF1/4CT52R472J resistor?

The operating temperature range is -55°C to 155°C.

What are the dimensions of the CF1/4CT52R472J resistor?

The dimensions are 0.091" Dia x 0.240" L (2.30mm x 6.10mm).

What is the temperature coefficient of the CF1/4CT52R472J resistor?

The temperature coefficient is -450/ +350ppm/°C.
