| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
201 pcs
|
201 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact System | |
| Contact Type | |
| Fastening Type | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Package Type | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Standard Package Qty | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

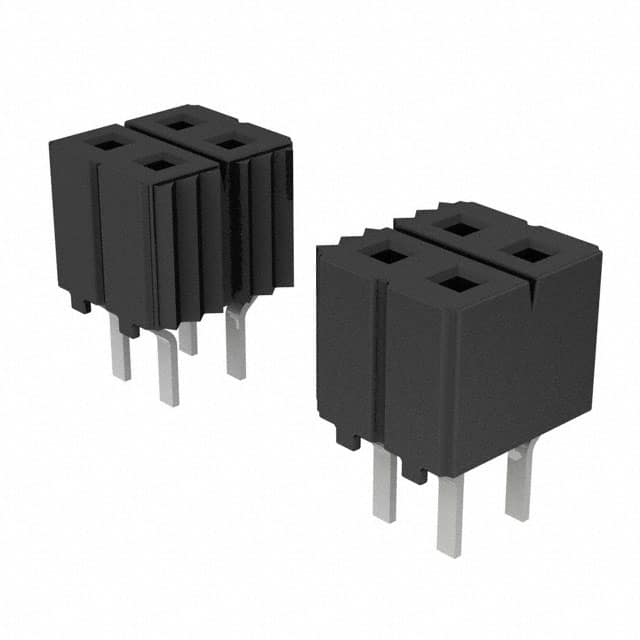

The Samtec CES-109-01-T-D is a low-profile, through-hole socket strip receptacle from the CES series. It is designed for board-to-board stacking applications and features a 2.54mm (0.100") pitch with 18 positions arranged in 2 rows. The connector uses a dual leaf contact system for reliable connections and has a push-pull fastening mechanism. It is terminated by soldering to a PCB.
Insulation is black, with a height of 5.08mm (0.200") and the contact length is 3.25mm (0.128"). The contact finish is tin. This connector can operate in a temperature range of -55°C to 105°C and is rated UL94 V-0 for flammability. It is packaged in tubes of 24 pieces.
The Samtec CES-109-01-T-D is suitable for applications requiring a low-profile, reliable interconnection between PCBs. The through-hole mounting ensures robust mechanical attachment. The dual leaf contact system provides consistent electrical performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.83 | $1.83 |
| 48+ | $1.56 | $1.56 |
| 120+ | $1.42 | $1.42 |
| 504+ | $1.40 | $1.40 |
| 1,008+ | $1.31 | $1.31 |
| 2,016+ | $1.17 | $1.17 |
| 5,016+ | $1.14 | $1.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18 positions in 2 rows.
2.54mm (0.100")
Through hole.
Push-Pull.
Tin.
-55°C to 105°C.
UL94 V-0.
