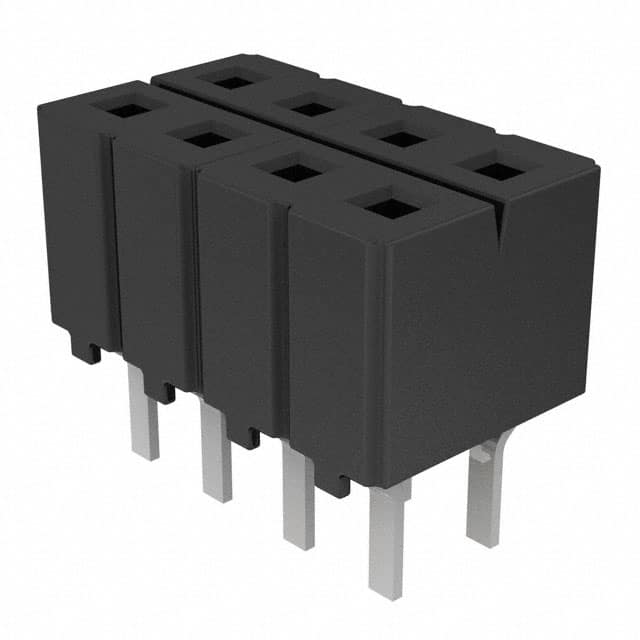

The Samtec CES-104-01-S-D is a .100" (2.54mm) pitch closed entry low profile socket strip designed for board-to-board applications. It features 8 positions arranged in 2 rows with through-hole solder termination. The connector uses a dual leaf contact system with phosphor bronze contacts plated with 30µ" (0.76µm) tin over 50µ" nickel.
Electrical ratings include a current rating of 5.5A per pin when 2 pins are powered, and a voltage rating of 400 VAC. The insulator is made of black glass-filled polyester with a UL94 V-0 flammability rating. The operating temperature range for the tin plating option is -55°C to +105°C.
The connector has a vertical orientation with a push-pull fastening type. Its insertion depth ranges from 2.62mm to 4.06mm. The mounting type is through hole with a lead style of -01 (3.25mm contact length). Packaging is bulk. Compatible mating headers include TSW, MTSW, HTSW, and other Samtec .100" pitch header families.
The Samtec CES-104-01-S-D is a .100" (2.54mm) pitch closed entry low profile socket strip manufactured by Samtec Inc.
It has 8 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
The current rating is 5.5A per pin when 2 pins are powered based on CES/TSW mating.
The voltage rating is 400 VAC.
It is a through-hole mounting connector with solder termination.
The contact finish is tin with a thickness of 30µ" (0.76µm) over 50µ" nickel.
