| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Tape & Reel | |
| Voltage | |
| Width |

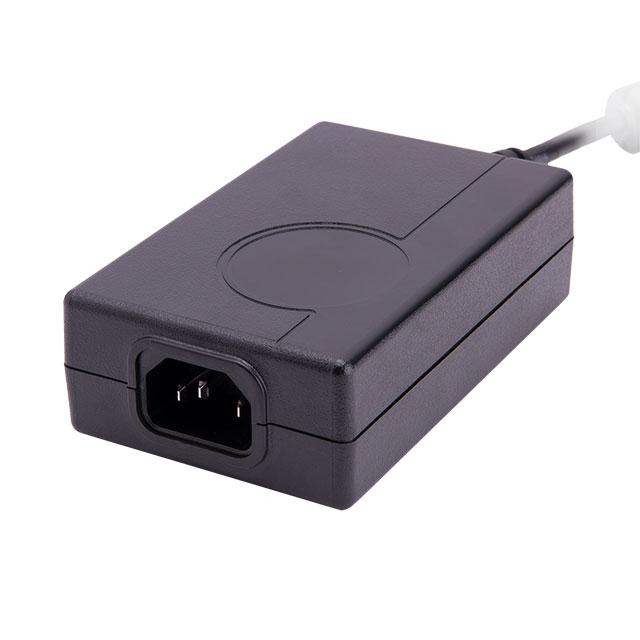

This AC/DC desktop adapter from SL Power Electronics, part number CENB1060A0945F01, delivers 54 watts of power with a 9V output voltage and 6A current. It is designed for ITE (Commercial) applications and meets Level V efficiency standards.
The adapter features an IEC 320-C14 input connector and a locking barrel plug output with dimensions 2.5mm I.D. x 5.5mm O.D. x 9.5mm, with positive center polarization. Its compact dimensions are 108.0mm x 67.7mm x 32.5mm.
Operating within a temperature range of 0°C to 40°C, this adapter has a low no-load power consumption of 500mW maximum. It is classified as a Desktop (Class I) form factor and is designed for international use. The input requires a cord, sold separately, with an available length of 4.7' (1.45m).
The adapter provides a 9V output voltage and 6A current.
The adapter has a total power output of 54W.
It uses an IEC 320-C14 input connector.
The adapter operates between 0°C and 40°C.
The adapter has an efficiency rating of Level V.
It is suitable for ITE (Commercial) applications.
