| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Width |

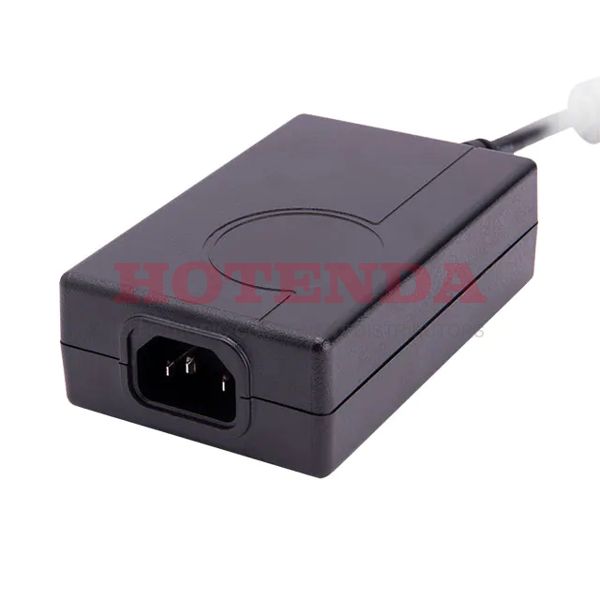

This AC/DC desktop adapter from SL Power Electronics, part number CENB1060A0944N01, delivers 54 watts of power with a 9V output at 6A. Designed for ITE (Commercial) applications, it operates internationally and meets Level V efficiency standards.
The adapter features an IEC 320-C8 input connector and a locking barrel plug output with a 2.0mm I.D. x 5.5mm O.D. x 9.5mm configuration, utilizing positive center polarization. Its physical dimensions are 108.0mm in length, 67.7mm in width, and 32.5mm in height. The operating temperature range is from 0°C to 40°C.
Compliance is indicated by CE and cULus approvals. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1 Unlimited. The adapter has a low no-load power consumption of 500mW maximum.
The CENB1060A0944N01 adapter provides a 9V output voltage at a 6A current.
The power rating for this adapter is 54W.
The adapter uses an IEC 320-C8 input connector.
The adapter measures 108.0mm in length, 67.7mm in width, and 32.5mm in height.
The operating temperature range is 0°C to 40°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
