| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

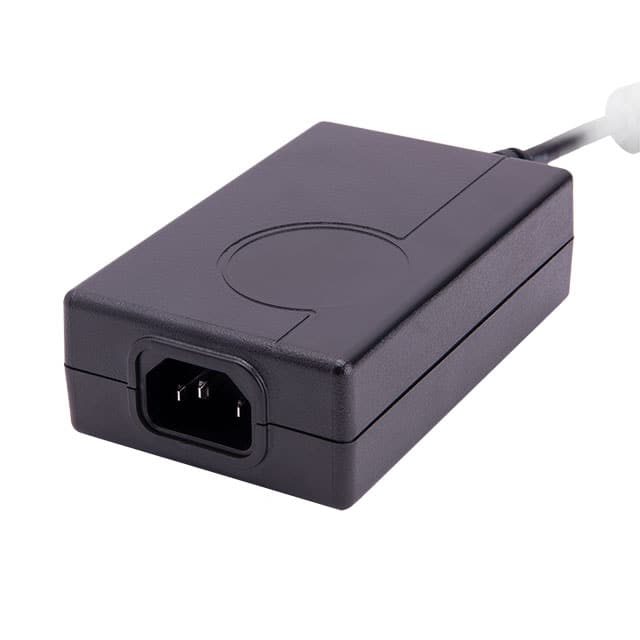

This AC/DC desktop adapter from SL Power Electronics, part number CENB1060A0902Q01, provides a 9V output with a maximum current of 6A, delivering up to 54W of power. It is designed for ITE (Commercial) applications and features Level V efficiency.
The adapter has an IEC 320-C18 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. Its dimensions are 108.0mm x 67.7mm x 32.5mm. The operating temperature range is 0°C to 40°C, and it consumes less than 500mW at no load.
Compliance is indicated by CE and cULus approval agencies. The adapter is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected. The input type is a cord, sold separately, with a length of 4.7 feet (1.45m).
The output is 9V DC at 6A (54W).
0°C to 40°C.
Level V.
500mW maximum.
Barrel plug, 2.1mm inner diameter x 5.5mm outer diameter x 9.5mm length.
CE and cULus.
IEC 320-C18.
