| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Topology | |
| Turn On Time | |
| Voltage | |
| Weight | |
| Width |

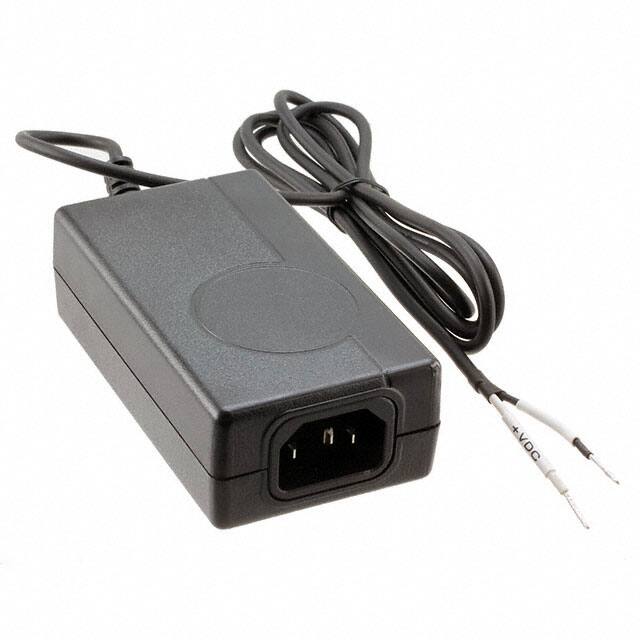

The SL Power Electronics CENB1030A4865F01 is a 32-watt AC/DC desktop power supply designed for ITE (Commercial) applications. It features a universal input voltage range of 100-240VAC and provides a regulated 48V output.
This power adapter meets EISA2007, CEC Efficiency Level V, and EU(EC) No. 278/2009 Phase II requirements, ensuring energy efficiency. It is certified to UL/EN60950-1, 2nd Edition, LPS standards.
The unit has a compact polycarbonate enclosure with dimensions of 95.5mm x 54.0mm x 31.0mm. It includes overload and short circuit protection in hiccup mode. The output is delivered via stripped, tinned wire leads with a cord length of 1.50 meters.
Key specifications include a low no-load power consumption of 300mW max, an MTBF of over 100,000 hours, and an operating temperature range of 0°C to 40°C.
100-240 VAC.
48V.
0°C to 40°C.
Desktop (Class I) with polycarbonate case.
Level V per EISA2007, CEC, and EU Phase II.
Overload and short circuit protection in hiccup mode.
EN/IEC/CSA/UL60950-1 2nd Edition, LPS.
