Mfr Part #:

CENB1030A2465N01

Mfr Name: SL Power Electronics Manufacture of Condor/Ault Brands

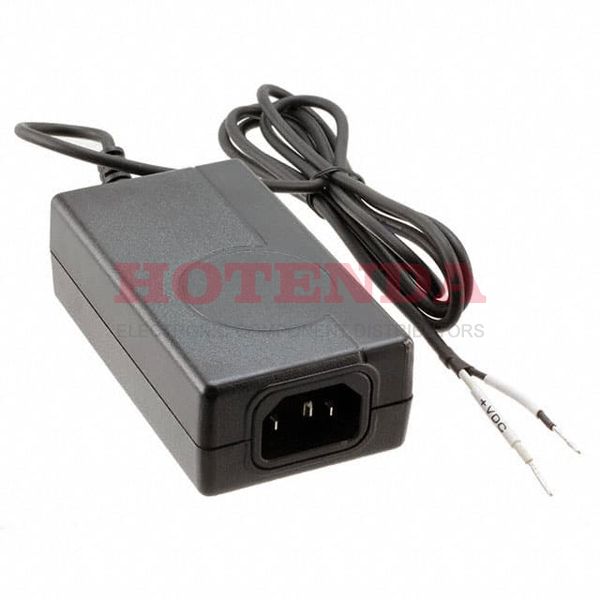

The SL Power Electronics CENB1030A2465N01 is a 32W AC/DC desktop adapter with a 24V output. It operates from a universal 100-240VAC input and meets Level V efficiency standards.

Stock on Request

CENB1030A2465N01 Description

Short technical summary and product information.

This SL Power Electronics CENB1030A2465N01 is a versatile AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a regulated 24V output with a maximum power of 32W and an input range of 100-240VAC.

The adapter meets EISA2007, CEC Efficiency Level V, and EU(EC) No. 278/2009 Phase II requirements, ensuring energy efficiency. It features a compact polycarbonate enclosure with dimensions of 95.5mm x 54.0mm x 31.0mm and a weight of 200g. The output is provided via stripped, tinned wire leads, with a cord length of 1.50m.

Safety and reliability are ensured through compliance with EN/IEC/CSA/UL60950-1, 2nd Edition standards. The unit operates within a temperature range of 0°C to 40°C and offers protection against overload and short circuits via hiccup mode. It also meets stringent EMC specifications including EN55022 Class B and FCC Part 15 Class B for conducted and radiated emissions.

CENB1030A2465N01 Quick Information

Product Type: AC DC Desktop, Wall Adapters

Series: Universal 30 Watt Series

Canonical Name: SL Power Electronics Manufacture of Condor/Ault Brands CENB1030A2465N01 AC/DC Desktop Adapter

Subcategory: Desktop Adapter

CENB1030A2465N01 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CENB1030A2465N01 Features

32W AC/DC desktop power adapter.
24V regulated output voltage.
100-240VAC universal input range.
Meets Level V energy efficiency standards.
ITE (Commercial) application suitability.

CENB1030A2465N01 Applications

Ideal for IT equipment power.
Suitable for commercial devices.
Designed for universal power needs.
Ensures energy efficient operation.

CENB1030A2465N01 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output voltage of the CENB1030A2465N01 adapter?

The output voltage is 24V.

What is the maximum power output of this adapter?

The maximum power output is 32W.

What is the input voltage range for the CENB1030A2465N01?

The input voltage range is 100-240VAC.

What efficiency level does this adapter meet?

It meets Level V efficiency.

What are the operating temperature limits for this power supply?

The operating temperature range is 0°C to 40°C.

What type of output connector does the CENB1030A2465N01 use?

It uses a 2.5mm barrel type (Ault #3) connector with a center positive contact.

What safety standards does this adapter comply with?

It complies with EN/IEC/CSA/UL60950-1, 2nd Edition, LPS.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	SL Power Electronics Manufacture of Condor/Ault Brands
Applications	ITE (Commercial)
Approval Agency	CE, cULus
Cord Length	59" (1.50m)
Current	1.33A
Efficiency	Level V
Form	Desktop (Class II)
Height	31.0mm (1.22")
Input Connector	IEC 320-C8
Input Type	Cord (Sold Separately)
Lead Style	Stripped, Tinned Wire Leads
Length	95.5mm (3.76")
No Load Power Consumption	300mW (Max)
Operating Temperature	0°C ~ 40°C
Output Cable	#18AWG (UL1185), 1,500mm, 2 conductor
Output Connector	2.5mm barrel type (Ault #3) connector, center contact (+)
Overload Protection	Hiccup Mode
Power (Watts)	32W
Region Utilized	International
Relative Humidity	5% to 95%
Topology	Switching – Fixed Frequency Flyback
Turn On Time	2 seconds max.
Voltage	24V
Weight	200g
Width	54.0mm (2.13")
