Mfr Part #:

CENB1030A1865F01

Mfr Name: SL Power Electronics Manufacture of Condor/Ault Brands

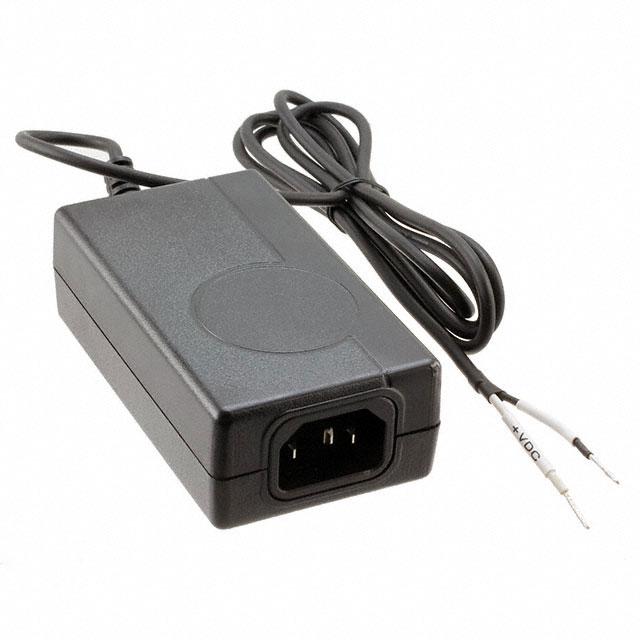

The SL Power Electronics CENB1030A1865F01 is a 30W AC/DC desktop power supply with an 18V output. It meets Level V efficiency standards and is designed for ITE applications.

Stock on Request

CENB1030A1865F01 Description

Short technical summary and product information.

The SL Power Electronics CENB1030A1865F01 is a versatile 30-watt AC/DC desktop power supply designed for ITE (Commercial) applications. It features a universal input voltage range of 100-240VAC and provides a regulated 18V output.

This power supply meets EISA2007, CEC Efficiency Level V, and EU(EC) No. 278/2009 Phase II requirements, ensuring energy efficiency. It offers robust protection features including overload and short circuit protection in hiccup mode. The unit complies with safety standards EN/IEC/CSA/UL60950-1, 2nd Edition, and LPS.

Constructed with a black 94V0 polycarbonate case, the dimensions are 95 x 54 x 31mm. It includes an IEC 320-C14 input connector and stripped, tinned wire leads for output. The operating temperature range is 0°C to 40°C, with a calculated MTBF of over 100,000 hours.

EMC specifications include EN55022 Class B and FCC Part 15 Class B for both conducted and radiated emissions. It also meets EN61000-4 standards for various immunity tests.

CENB1030A1865F01 Quick Information

Product Type: AC DC Desktop, Wall Adapters

Canonical Name: SL Power Electronics Manufacture of Condor/Ault Brands CENB1030A1865F01 AC/DC Desktop Power Supply

Subcategory: Desktop Power Supply

CENB1030A1865F01 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CENB1030A1865F01 Features

30W AC/DC desktop power supply.
18V regulated output voltage.
Universal 100-240VAC input.
Meets Level V efficiency standards.
ITE (Commercial) application ready.

CENB1030A1865F01 Applications

Used in commercial information technology equipment.
Suitable for networking and telecommunications devices.
Ideal for point-of-sale systems and peripherals.
Designed for industrial control and test equipment.

CENB1030A1865F01 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the output voltage of the CENB1030A1865F01?

The output voltage is 18V.

What is the power rating of this AC/DC adapter?

This adapter has a power rating of 30W.

What is the operating temperature range for this power supply?

The operating temperature range is 0°C to 40°C.

What are the RoHS compliance details for the CENB1030A1865F01?

The RoHS status is RoHS3 Compliant.

What is the input voltage range for the CENB1030A1865F01?

The input voltage range is 100-240 VAC.

What type of output connector does this power supply use?

It uses a 2.5mm barrel type (Ault #3) connector with a center positive contact, or stripped, tinned wire leads.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	SL Power Electronics Manufacture of Condor/Ault Brands
Applications	ITE (Commercial)
Approval Agency	CE, cULus
Cord Length	59" (1.50m)
Current	1.67A
Efficiency	Level V
Form	Desktop
Height	31.0mm (1.22")
Input Connector	IEC 320-C14
Input Type	Cord (Sold Separately)
Lead Style	Stripped, Tinned Wire Leads
Length	95.5mm (3.76")
No Load Power Consumption	300mW (Max)
Operating Temperature	0° to 40°C
Output Cable	#18AWG (SPT-1), 1,500mm, 2 conductor / #18AWG (UL1185), 1,500mm, 2 conductor
Output Connector	2.5mm barrel type (Ault #3) connector, center contact (+)
Overload Protection	Hiccup Mode
Power (Watts)	30 W
Region Utilized	International
Relative Humidity	5% to 95%
Storage Temperature	-40° to +85°C
Topology	Switching – Fixed Frequency Flyback
Turn On Time	2 seconds max.
Voltage	18V
Weight	200g
Width	54.0mm (2.13")
