| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Halogen Free | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Topology | |
| Turn On Time | |
| Voltage | |
| Weight | |
| Width |

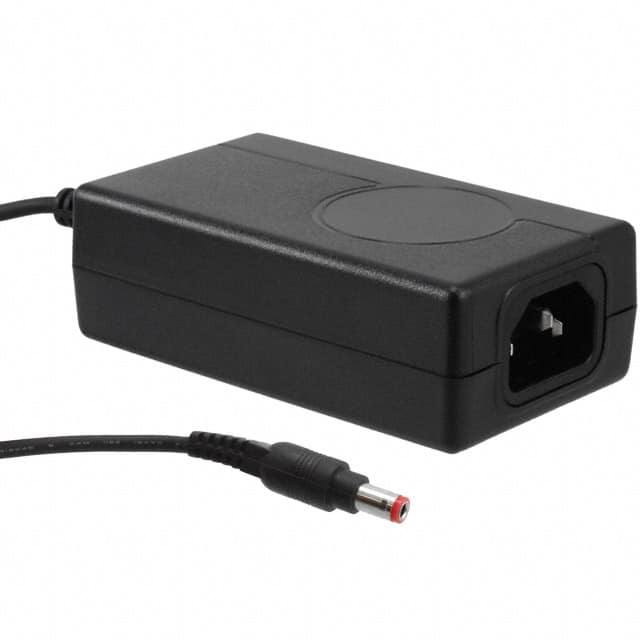

The SL Power Electronics CENB1030A0903F01 is a versatile AC/DC desktop power adapter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 100-240VAC and provides a regulated 9V output at up to 27W of power.
This adapter meets EISA2007, CEC Efficiency Level V, and EU(EC) No. 278/2009 Phase II requirements, ensuring energy efficiency. It features a standard IEC 320-C14 input connector and a 2.5mm barrel plug output connector with positive center polarization. The compact, impact-resistant polycarbonate enclosure measures 95.5mm x 54.0mm x 31.0mm.
Safety certifications include EN/IEC/CSA/UL60950-1, 2nd Edition, LPS. The adapter is designed for reliable operation within a 0°C to 40°C ambient temperature range and offers overload and short circuit protection in hiccup mode. It also boasts a calculated MTBF of over 100,000 hours.
100-240 VAC at 47-63 Hz.
Desktop.
0°C to 40°C.
Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm, positive center.
EN/IEC/CSA/UL60950-1, 2nd Edition, LPS; CE and cULus approved.
300mW maximum.
1% pk-pk maximum at 20MHz bandwidth.
