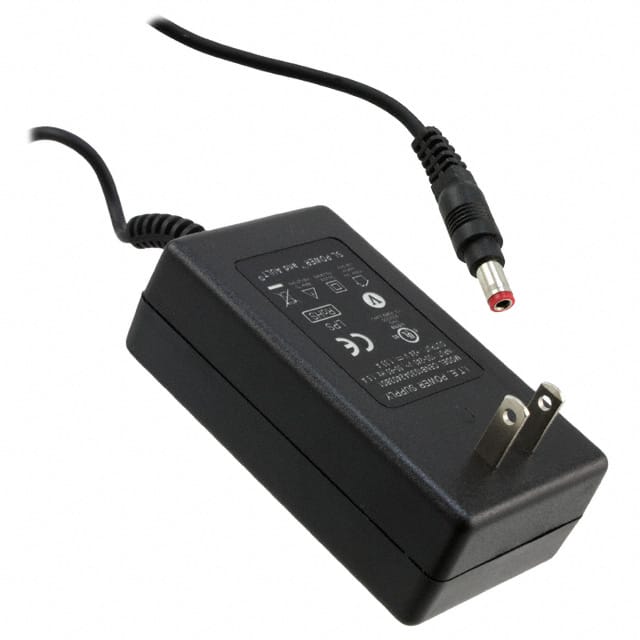

The SL Power Electronics CENB1030A0903B01 is a versatile AC/DC wall mount adapter designed for ITE applications. It operates with a universal input voltage range of 100-240 VAC and provides a regulated 9V output at up to 3A, delivering a total of 27W of power.
This adapter meets EISA2007, CEC Efficiency Level V, and EU(EC) No. 278/2009 Phase II requirements, ensuring energy efficiency. It features a compact, impact-resistant polycarbonate enclosure with dimensions of 95 x 54 x 31mm and a weight of 200g. The output is delivered via a standard 2.5mm I.D. x 5.5mm O.D. barrel plug with a positive center pin and a 1.50m cord.
Compliance includes EN/IEC/CSA/UL60950-1, 2nd Edition, LPS, and various EMC standards such as EN55022 Class B and FCC Part 15 Class B. The operating temperature range is 0°C to 40°C, with a low no-load power consumption of under 300mW.
The AC input voltage range is 100-240VAC.
The output is 9V DC at up to 3A, providing 27W of power.
The operating temperature range is 0°C to 40°C.
The adapter meets Level V efficiency requirements.
It has a 2.5mm ID x 5.5mm OD barrel plug with positive center polarity.
It complies with EN/IEC/CSA/UL60950-1 2nd Edition, LPS.
Hiccup mode overload and short circuit protection are provided.
