| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

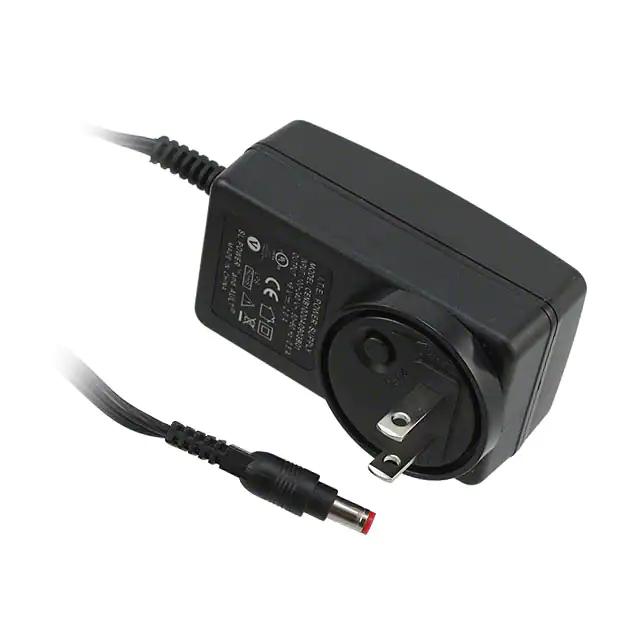

The SL Power Electronics CENB1020A4803B01 is an AC/DC wall mount adapter with a power output of 19W and a voltage of 48V. This adapter meets Level V efficiency standards, ensuring energy savings.
Designed for ITE (Commercial) applications, it operates within a temperature range of 0°C to 40°C. The adapter features a fixed blade input connector (NEMA 1-15P) and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. Its dimensions are 83.0mm x 47.0mm x 38.0mm, and it comes with a cord length of 59 inches (1.50m).
This wall mount adapter is classified as Class II and is suitable for use in North America. It complies with RoHS3 standards and has an MSL rating of 1.
The input voltage range is 100-240 VAC.
The output voltage is 48V DC.
The output current is 400mA.
The power rating is 19W.
The operating temperature range is 0°C to 40°C.
It is a wall mount adapter with Class II insulation.
It uses a barrel plug with 2.5mm inner diameter and 5.5mm outer diameter, 9.5mm length, positive center polarity.
